Skydroid G20 30KM Long Range Smart Drone Controller with Android 13 Dual-Band 2.4G/5.8G Transmission and 7” HD Screen

Skydroid G20 30KM Long Range Smart Drone Controller with Android 13 Dual-Band 2.4G/5.8G Transmission and 7” HD Screen

Skydroid G20 Remote Control Parameters：
Display: 7” industrial FHD touch screen
Resolution: 1920 × 1200
Processor: Qualcomm 6nm
OS: Android 13
RAM / Storage: 4GB / 64GB
Battery Capacity: 20000mAh
Endurance: 8–12 hours
Charging Interface: TYPE-C. 36W PD
Size / Weight: 277×138×96mm / 1.2kg
Frequency Band: 2.4GHz / 5.8GHz Dual Band
Dynamic Frequency: Automatic Frequency Hopping
Transmission Distance: 5–30KM (ground-to-air. visual)
RF Power: 23dBm @CE/FCC
Operating Temp: -10°C to 55°C
External Interfaces: USB. SIM card. Type-C. serial. SBUS. PWM

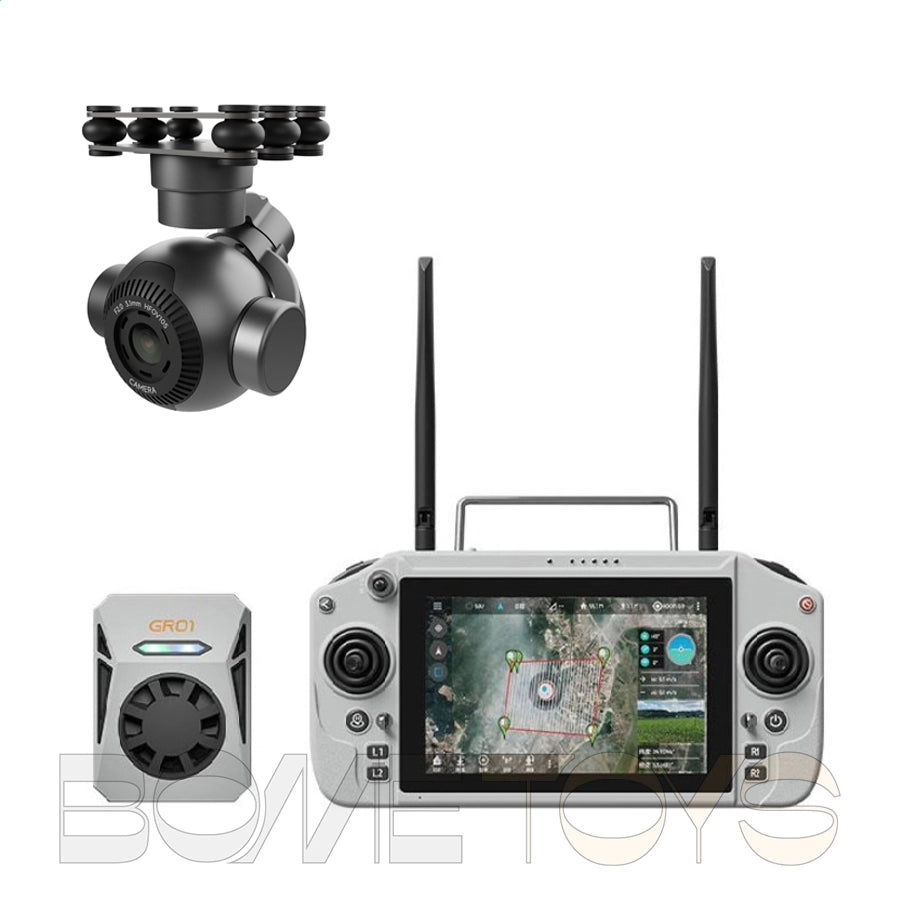

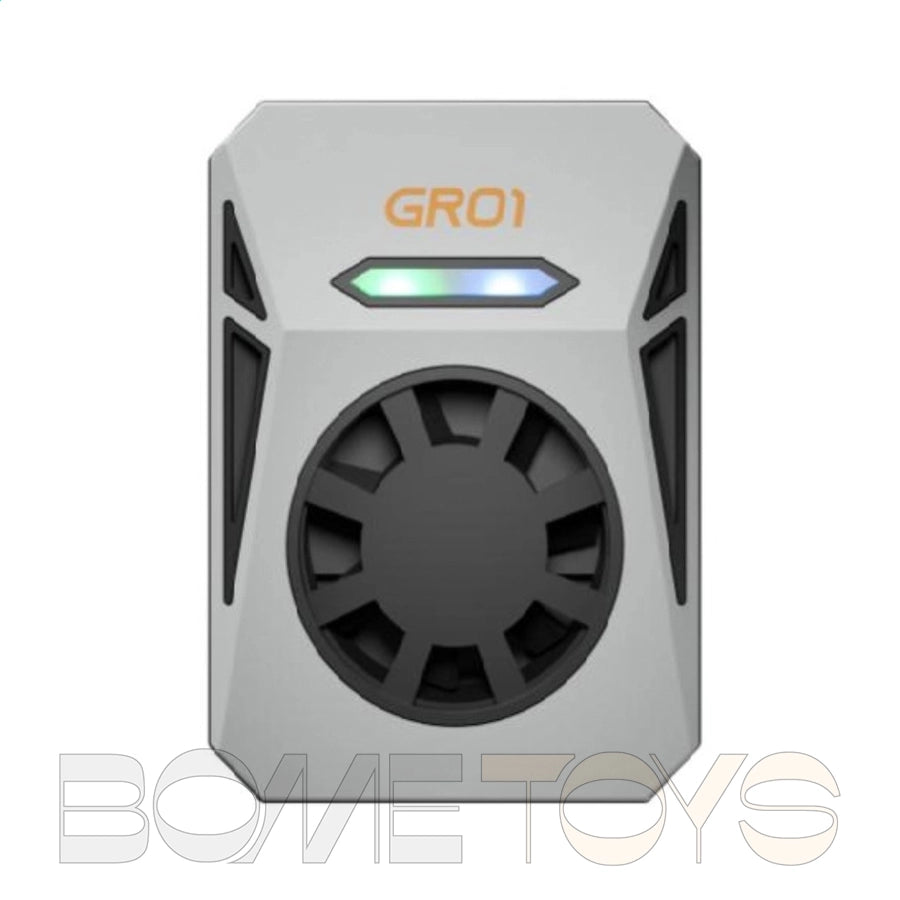

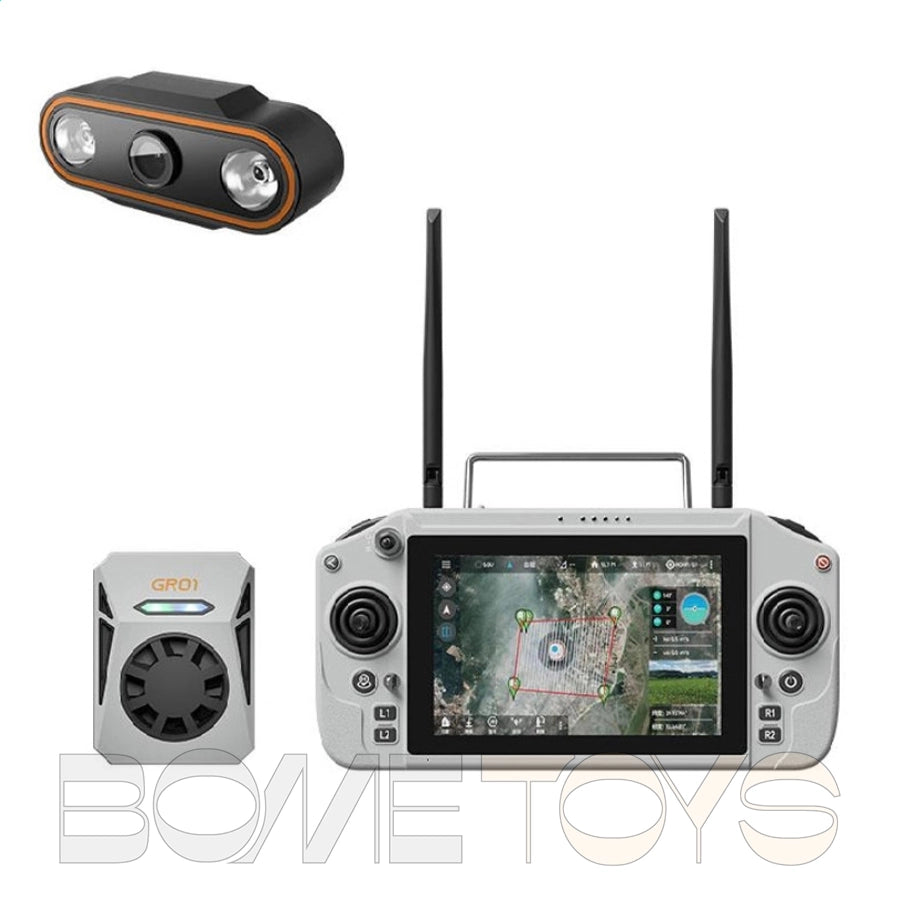

GR01 Receiver Parameters:
Frequency: 2.4GHz / 5.8GHz
Voltage Range: 7.2–72V (XT30)
Operating Current: 12V / 300mA
Serial Baud Rates: 57600 / 115200 / 921600
Data Transmission: 1 channel. 200Kbps–160Mbps
Network / SBUS Ports: 1 channel each
PWM Output: 3 channels
RF Power: 23dBm @CE/FCC
Channel Bandwidth: 1.25MHz to 40MHz (selectable)
Dimensions / Weight: 45.5×60×21.5mm / 37g
Operating Temp: -10°C to 60°C

Overview:
The Skydroid G20 is a professional-grade 30KM long-range remote controller designed for industrial and commercial drone applications. It features a 7-inch 1920×1200 full HD high-brightness touchscreen. powered by a Qualcomm 6nm processor and the latest Android 13 OS. offering smooth operation and hardware-level decoding for 4K H.264/H.265 video. With dual-band 2.4GHz/5.8GHz automatic switching. it ensures stable signal transmission in complex environments. The controller is equipped with 8GB RAM. 128GB internal storage. and a 20000mAh battery providing up to 12 hours of runtime. supported by 36W PD Type-C fast charging. Its versatile I/O options—including SIM card slot. USB. Type-C. SBUS. PWM. and serial ports—make it compatible with various payloads such as gimbals. pods. and industrial-grade video equipment.

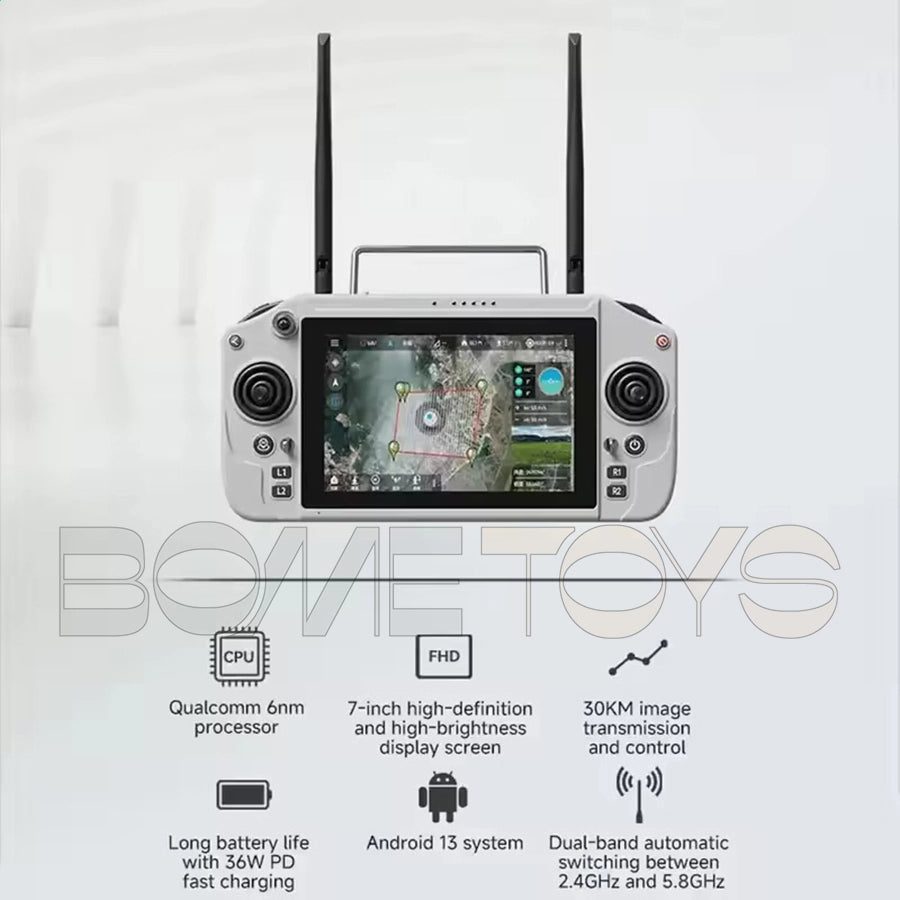

Skydroid G20 Features:

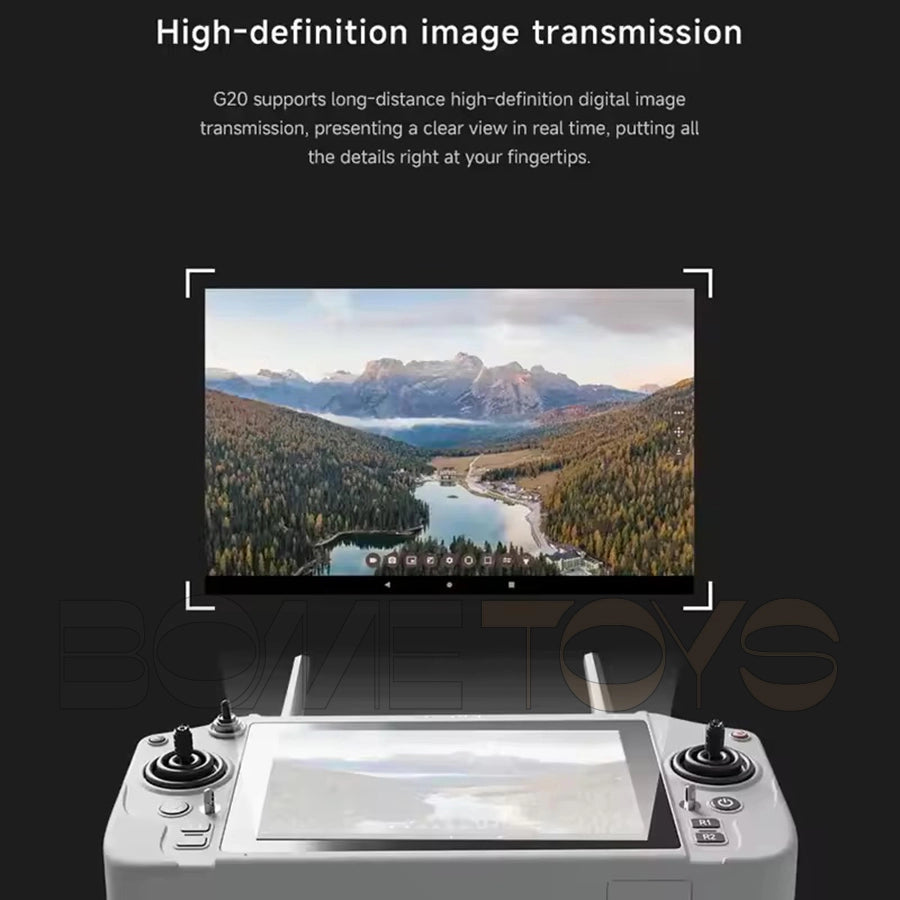

1. 30KM Digital Video & Control Transmission: Skydroid G20 reliable long-distance operation using Skydroid's advanced image control link.

2. Dual-Band 2.4GHz/5.8GHz with Auto-Switching: Enhances anti-interference and adapts dynamically to flight conditions.

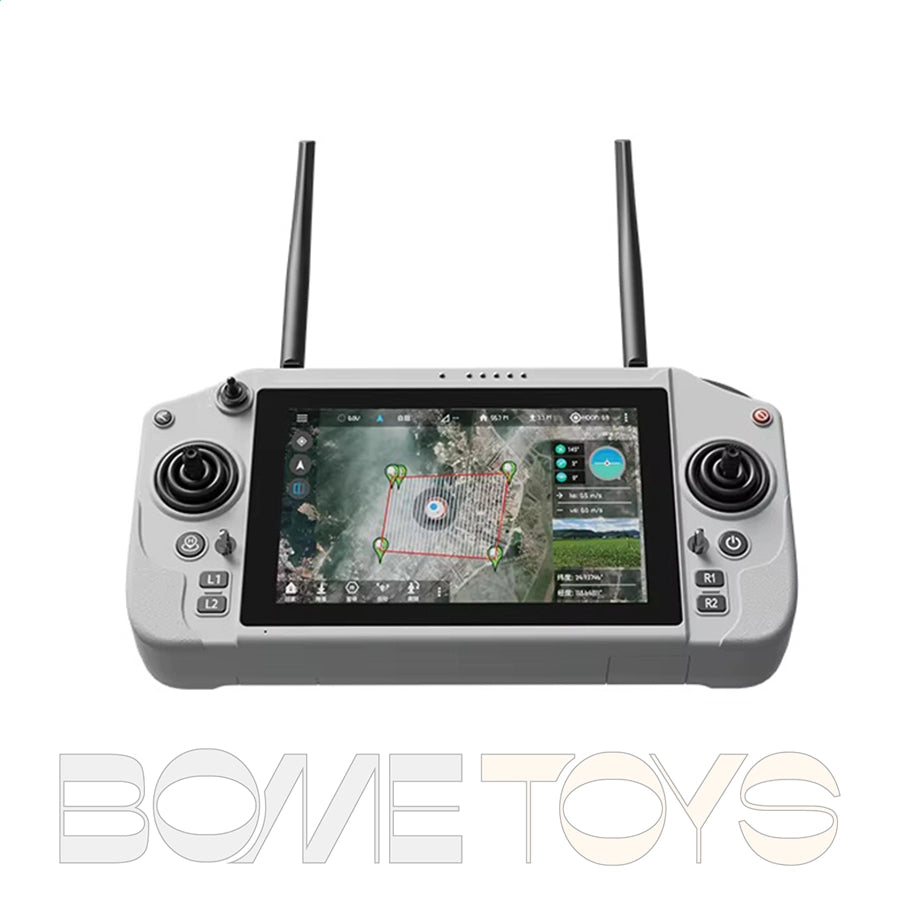

3. 7” FHD Industrial Touchscreen: Crisp 1920×1200 resolution and high brightness ensure visibility under sunlight.

4. Android 13 + Qualcomm 6nm Platform: Enables seamless app performance and real-time video decoding.

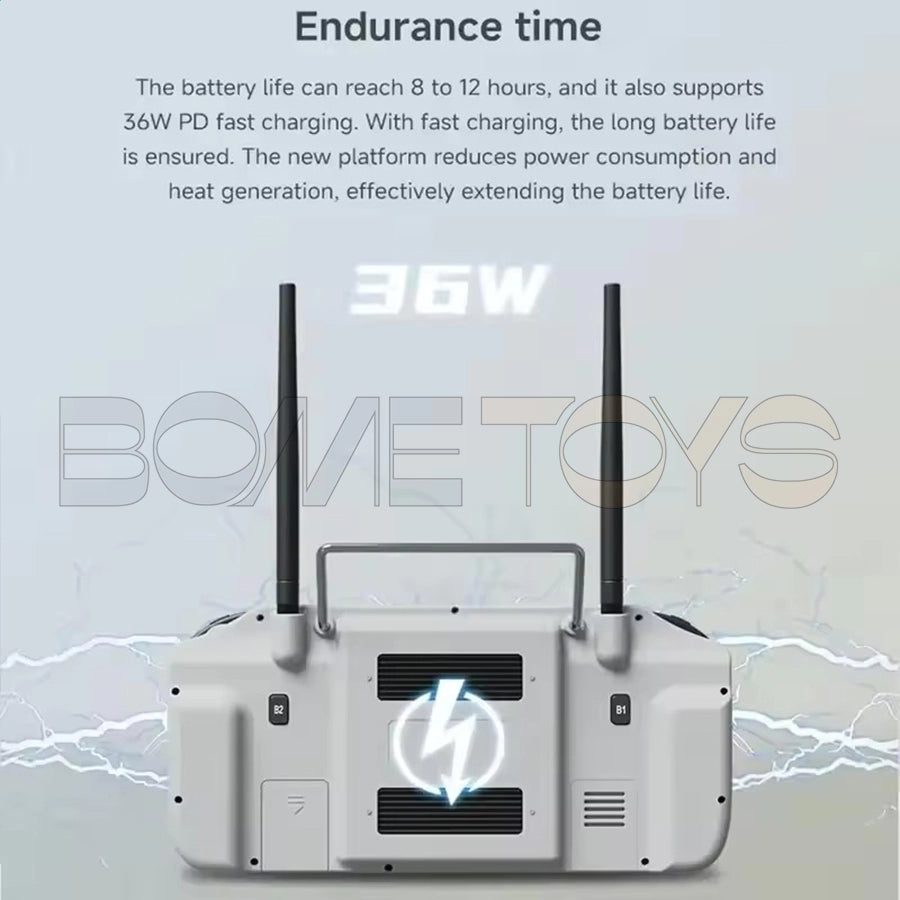

5. Extended Battery Life: Up to 12 hours with 36W PD fast charging via Type-C for continuous missions.

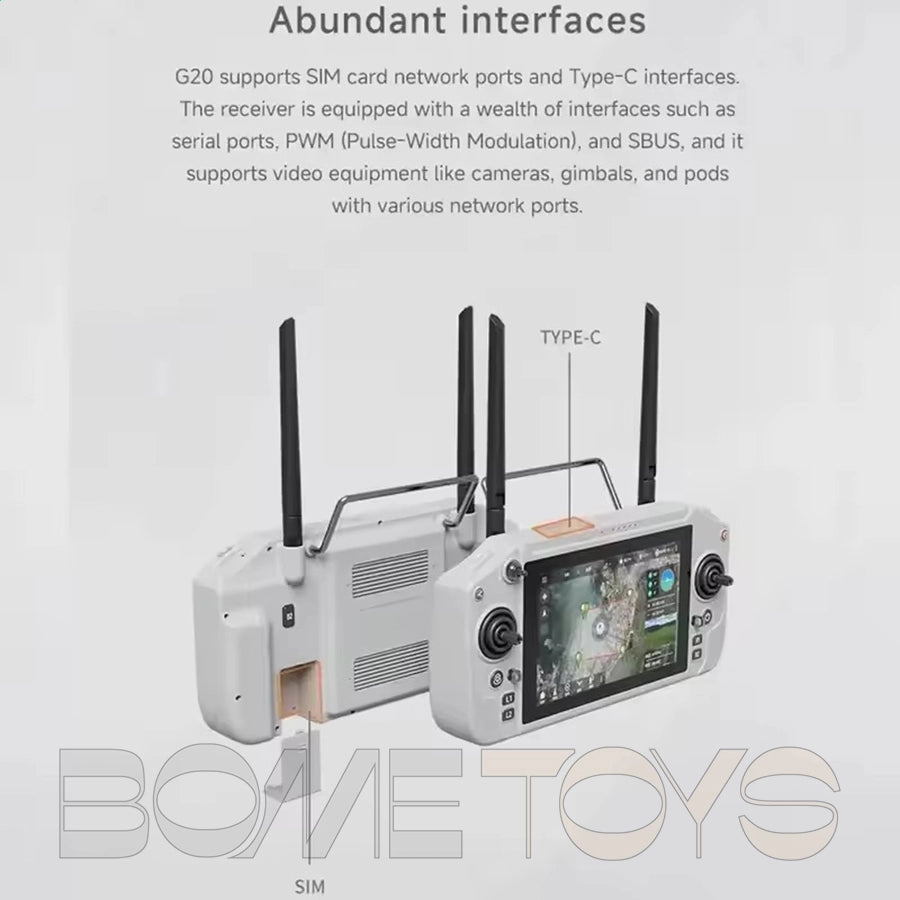

6. Abundant Interfaces: Includes SIM. USB. serial ports. PWM. SBUS—ideal for drones with cameras. sensors. and gimbals.

Applications:
The Skydroid G20 remote controller is ideal for UAV missions in mapping. inspection. agriculture. surveillance. construction. and emergency response. Its 30KM image transmission. dual-band reliability. and advanced connectivity make it a versatile and powerful tool for demanding professional drone operations.
