FPV Drone Fiber Optic Image Transmission System 5–60km OpticalLink SKY/GBD Ground Receiver Airborne Fiber Optic Relay Extender Module

FPV Drone Fiber Optic Image Data Transmission System 5–60km OpticalLink SKY/GBD Ground Receiver Airborne Fiber Optic Relay Extender Module

* The upgraded tapered barrel design effectively reduces wind resistance and noise!

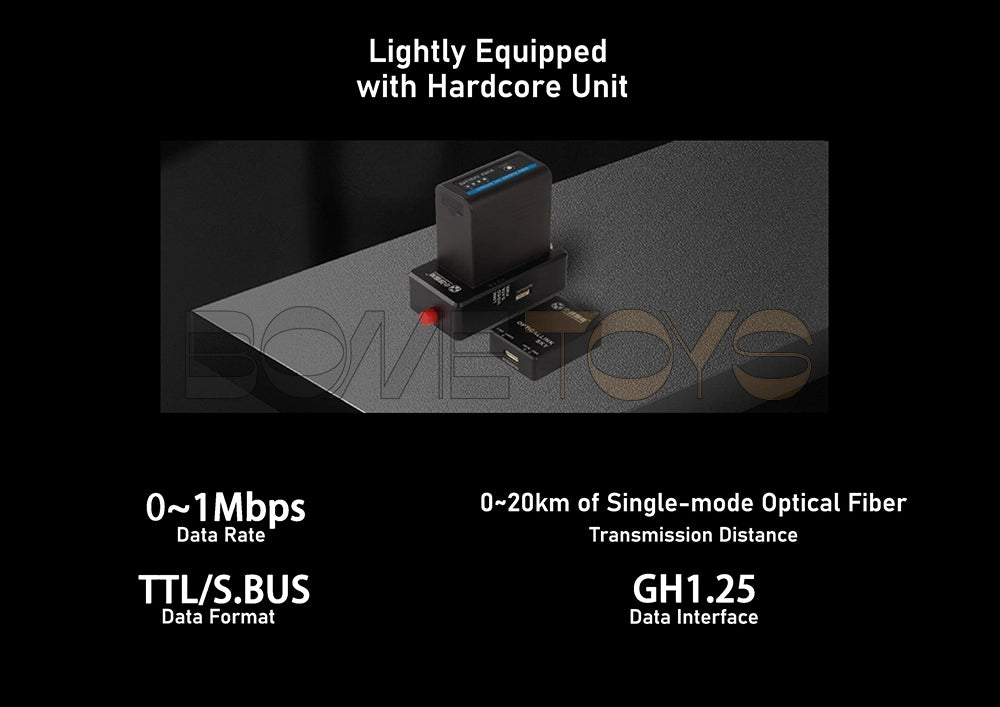

This product is a drones accessories Data Transmission System designed for FPV drones and robots. It integrates the OpticalLink SKY endpoint (airborne) and OpticalLink GBD ground receiver with an ultra‑light airborne optical fiber spool to deliver wired, high‑stability image/data links. The system is suitable for indoor, underwater and pipeline robots, and remote monitoring, providing clear visuals over long distances.

Using optical fiber as the transmission medium, the link is immune to electromagnetic interference and supports communication from 5–60km with high reliability and security.

Key Features
1. Optical fiber image/data link with strong anti‑interference and high stability.
2. 5–60km communication stated; supports long‑distance wired communication (5km, 10km shown).
3. No data interception during wired signal transmission.
Lightweight airborne fiber spools; carbon‑fiber shell.
4. OpticalLink SKY (airborne) and GBD (ground) endpoints with aluminium‑alloy shells.

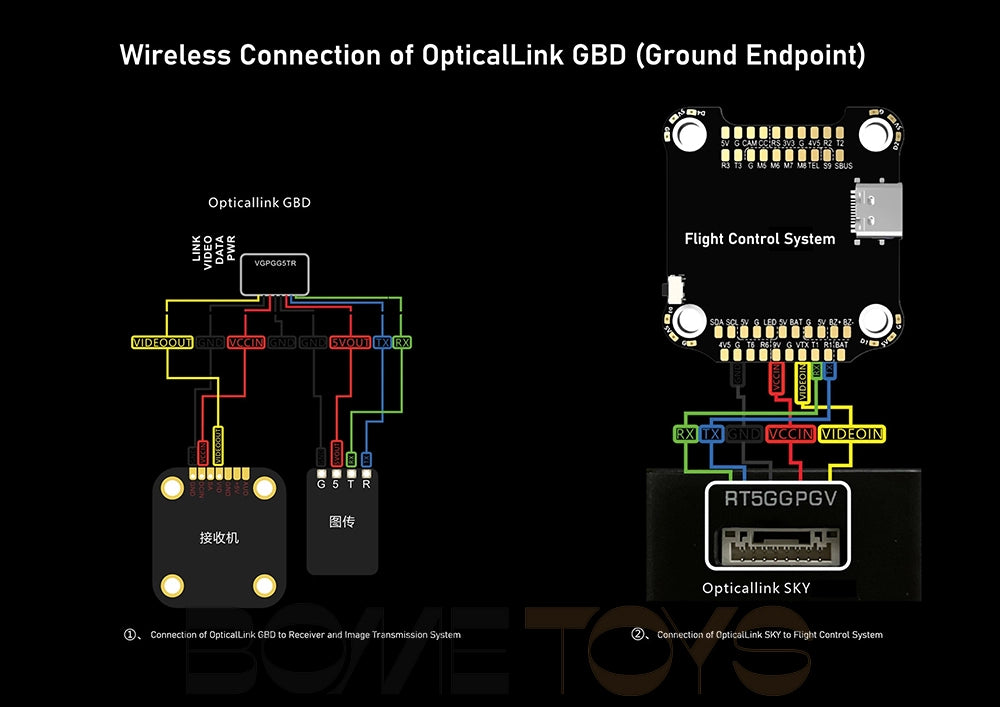

5. Connection diagrams show VIDEOIN/VIDEOOUT, TX/RX, VCCIN, 5VOUT, GND pin interfaces.

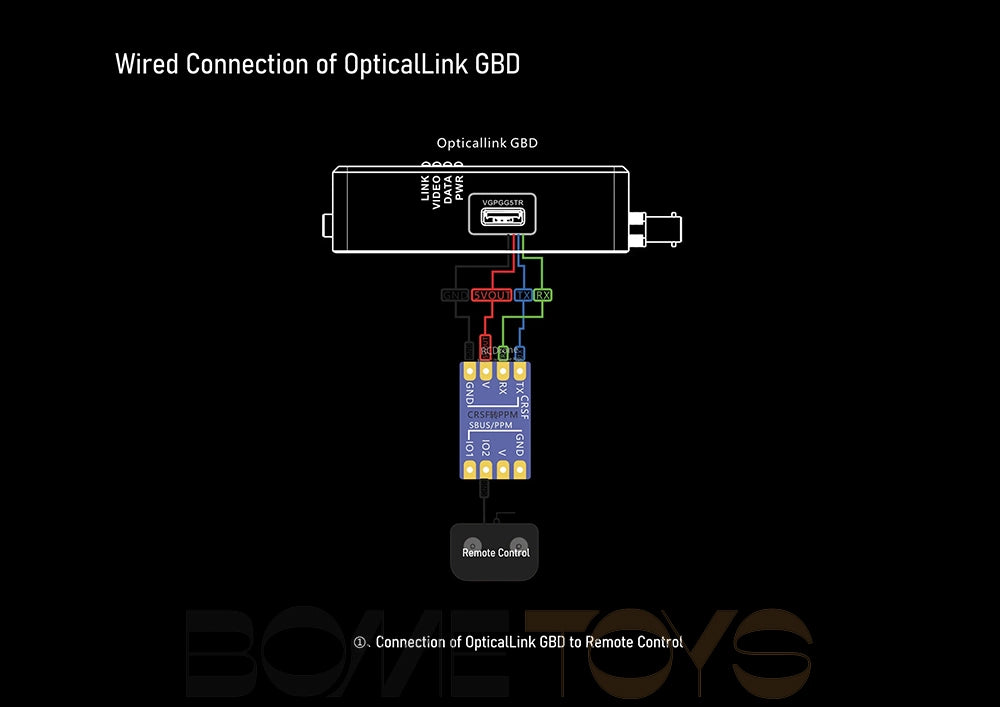

6. GBD supports wired connection to remote control via CRSF/SBUS/PPM interface (as illustrated).
7. Compatible with multiple fiber lengths; customization available.

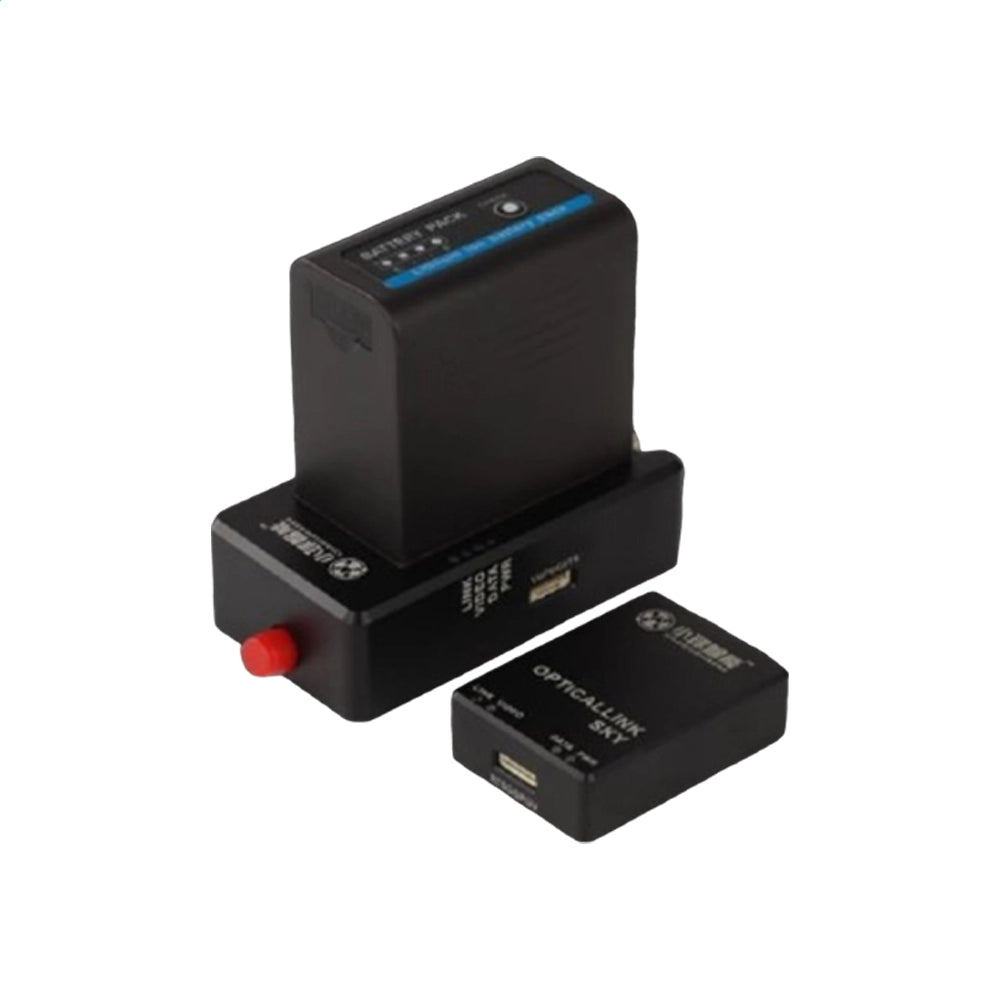

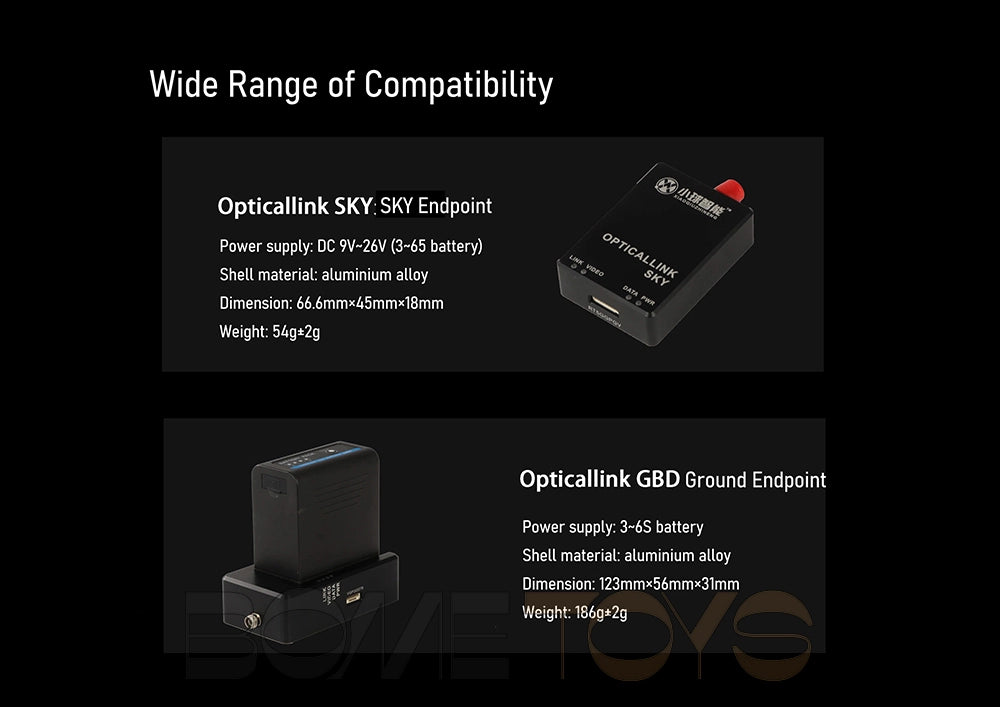

OpticalLink SKY Endpoint (airborne):
Power supply: DC 9V–26V (3–6S battery)
Shell material: Aluminium alloy
Dimension: 66.6mm × 45mm × 18mm
Weight: 54g ±2g

OpticalLink GBD Ground Endpoint:
Power supply: 3–6S battery
Shell material: Aluminium alloy
Dimension: 123mm × 56mm × 31mm
Weight: 186g ±2g

Airborne Optical Fiber Spools:
Lengths (shown): Fiber Optic 5km Image Transmission, Fiber Optic 10km Image Transmission, Fiber Optic 15km Image Transmission, Fiber Optic 20km Image Transmission, Fiber Optic 25km Image Transmission, Fiber Optic 30km Image Transmission, Fiber Optic 35km Image Transmission, Fiber Optic 50km Image Transmission, Fiber Optic 50km Image Transmission
Shell material: Carbon fiber

Applications:
1. FPV traversing drone missions in strong‑interference environments.
2. Indoor inspections, pipeline robots and underwater robots.

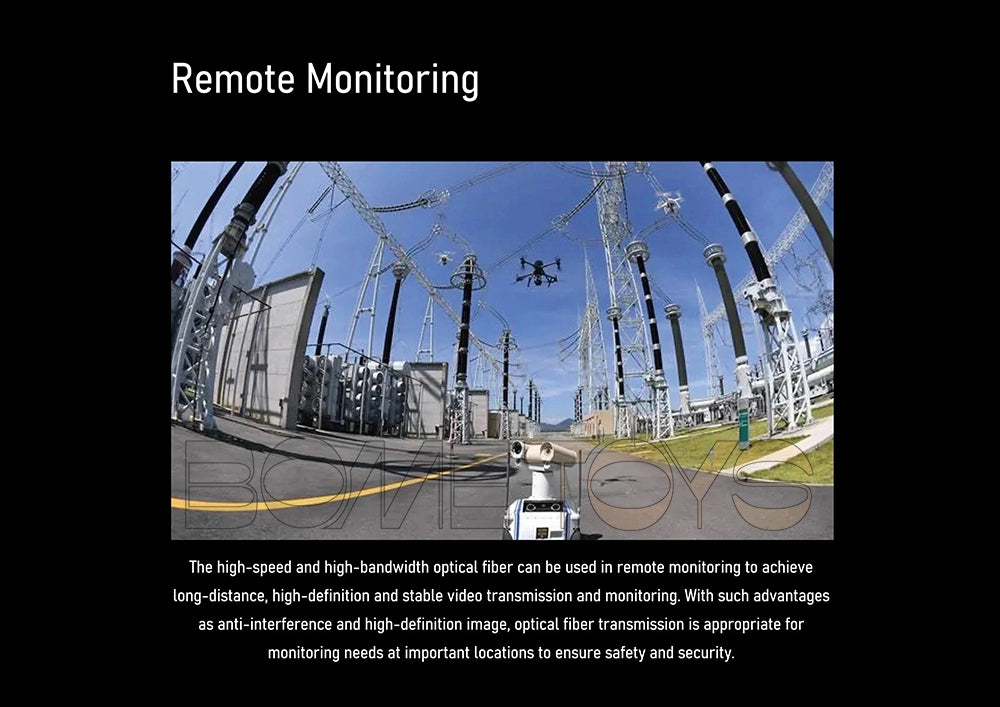

3. Remote monitoring requiring secure, stable image/data transmission.
