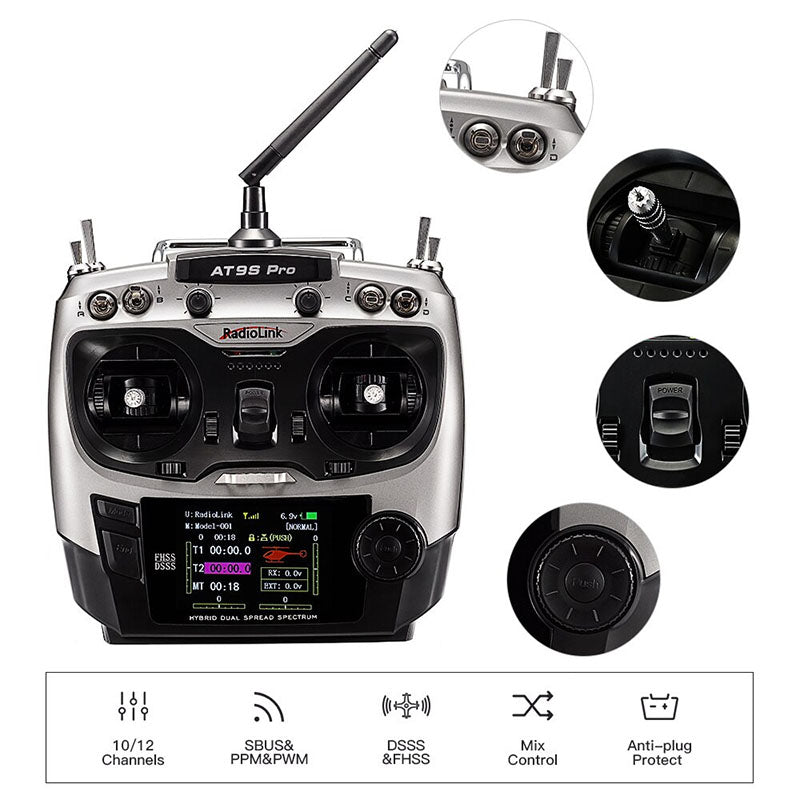

Radiolink AT9S Pro 12CH 2.4G Radio Transmitter R9DS Receiver Support Crossfire Protocol for for Airplane/Jet/FPV Racing Drone/Quad/RC Truck Car/Boat

AT9S ProTransmitter Specifications:
Channels: 10CH/12CH
Mode: Mode 1 or Mode 2
Signal: SBUS/PWM/PPM/CRSF
Frequency: 2.4GHz ISM bands (2400MHz to 2483.5MHz)
Channel Bandswidth: 5.0 MHz
Spread Spectrum: DSSS&FHSS/CRSF
Modulation Mode：QPSK
Adjacent Channel rejection: >38dbm
Transmission Power:
DSSS & FHSS <100mW(20dbm)
CRSF: 10mW/25mW/100mW/500mW/1W/2W(Optional)
Operating Current: DSSS&FHSS < 90mA@12V
CRSF Depends on the transmission power select
Operating Voltage: 7.4~18.0V
4096 Section Precision
Screen: 2.8 inches 16 colorful screen, 240*320 pixels
Channel: 12 channels , all 12 channels are customized

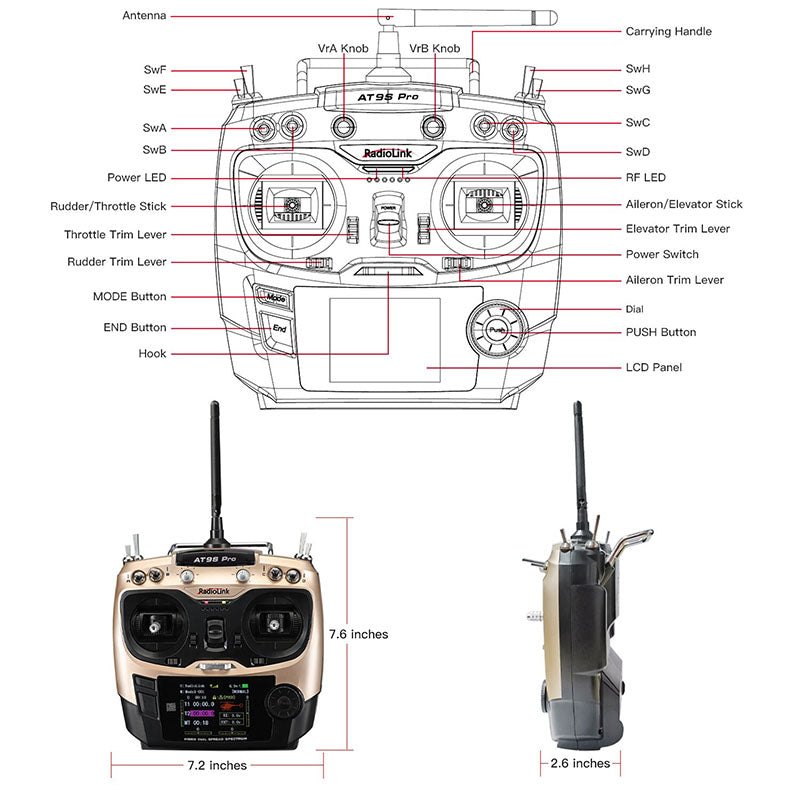

Size: AT9S Pro 183*100*193mm
Weight: 0.88kg
Control Range:4 kilometers in the air (Maximum range is tested in an unobstructed area free of interference)
Compatible receivers:
12CH - R12DSM, R12DS,
10CH- R9DS, R6DS,R6DSM
CRSF Protocol: Receiver from BLACKSHEEP
Battery: Dedicated lithium battery 11.1V 2200mAh 3S (optional)

R9DS Receiver Specifications:
Signal: SBUS,PWM
Channel: PWM 9 channels, SBUS 10 channels
Control Distance: 900 meters on ground, 3400 meters(2.11Miles) in the air(Maximum range tested in unobstructed areas free of interference and may vary depending on local regulations).
Working Voltage: 4.8-10V
Working Current: 38-45mA（input voltage: 5V）
Size: 43*24*15mm
Weight: 11g

Note:

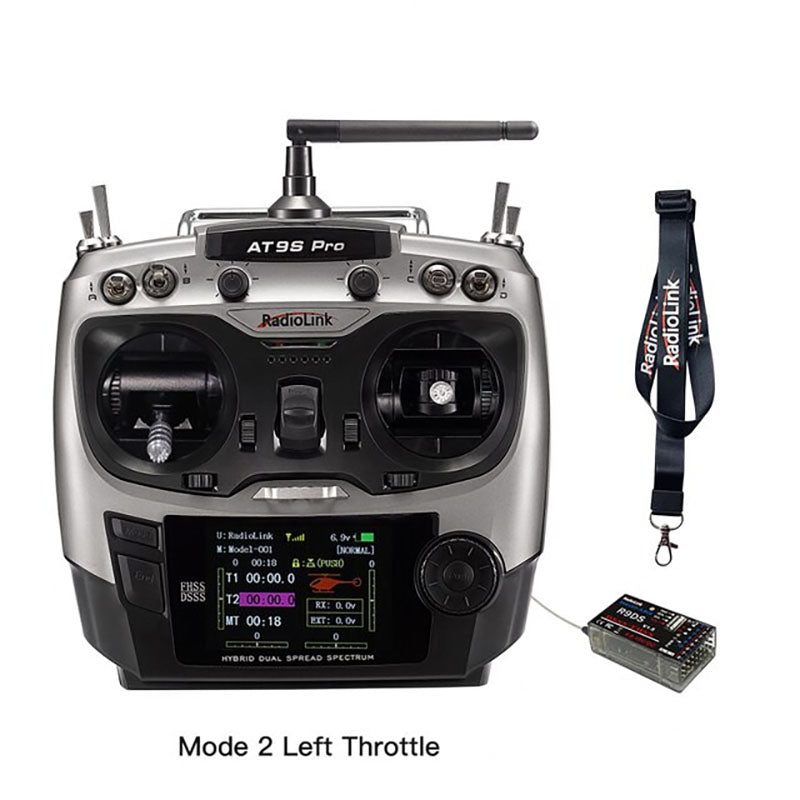

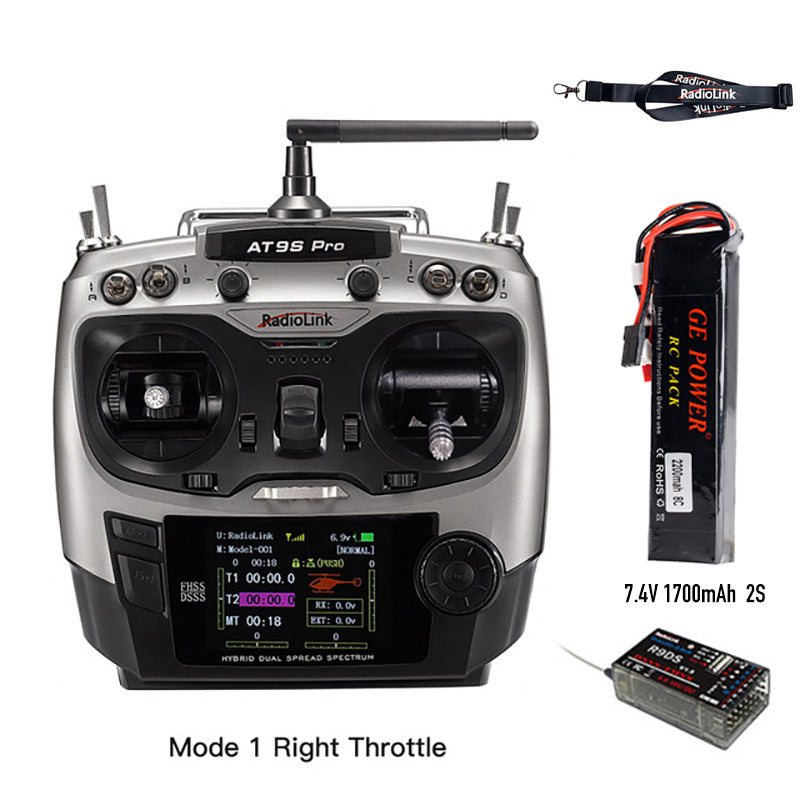

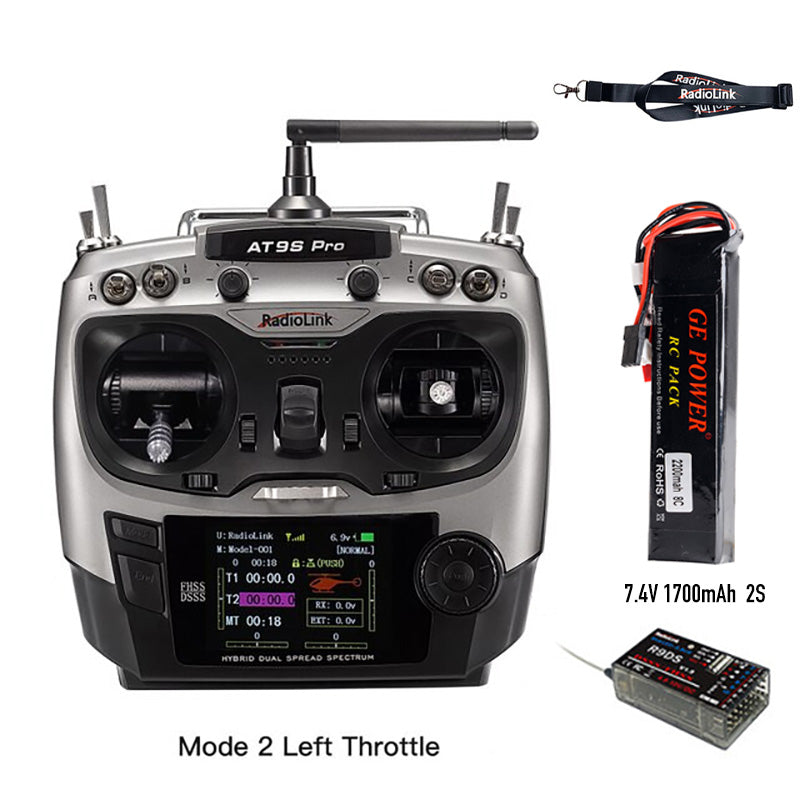

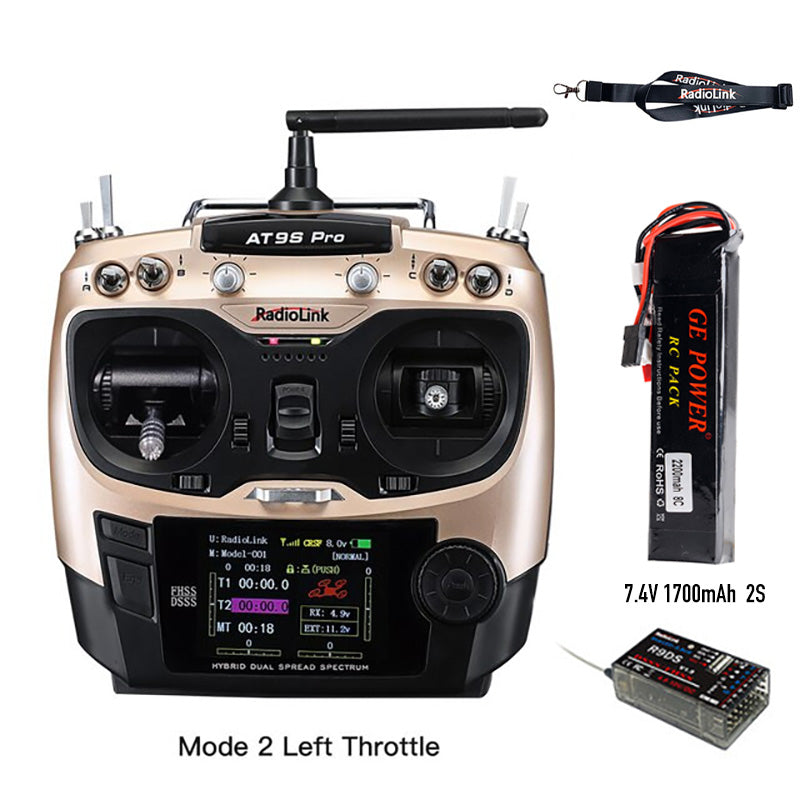

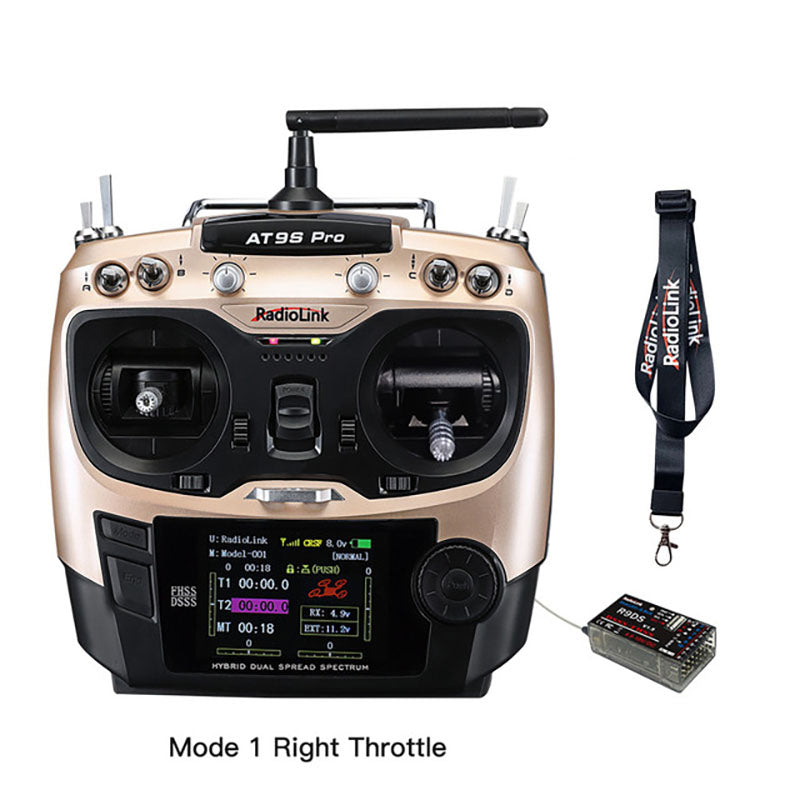

1. According to the color name to select AT9S Pro mode:Mode 1 Right hand o rMode 2 Left hand
2. Radiolink AT9S Pro Version TX 10/12CH RC Transmitter Radio Controller Support TBS Crossfire CRSF Protocols for Racing Drone, Quadcopter, Fixed Wing, Helicopter, Car Vehicles and more (Mode 1/2)

AT9S Pro Overview:
1. DSSS* and FHSS* which reduce overall signal interference and allow the AT9S Pro to produce a highly constant and stable transmission signal present on all 10/12 channels.
2. Setting simplicity,Excellent Anti-interference, Real-time Telemetry, USB upgrade, Voltage Protection, 3ms fast response for 10/12 channels, outstanding range over 2.4 miles(4km) (actual control distance is according the local environment).

AT9S PRO Features:
1.Excellent Anti-interference: The rc transmitter with DSSS&FHSS working synchronously to keep the excellent anti-interference performance, only 3ms for 10/12 channels response.
2. CRSF Protocol Supported: On the basis of the RadioLink unique communication technology of DSSS and FHSS, CRSF protocol from Blacksheep is added. Compatible with TBS Crossfire 915 module.
3. Compatible with SBUS, PPM, PWM and CRSF: With DSSS&FHSS protocol, SBUS, PPM and PWM can operate simultaneously for seamless user control. With CRSF protocol.
4. Real-time Information: When PRM-03 module works with flight controller, model voltage, speed, climb, throttle, longitude, latitude, altitude, GPS, RSSI, flight mode, yaw, roll, pitch and distance are displayed on the LCD screen display.
5. Adapts to Most of Types of Aircraft: Easy to understand user software makes quick work of changing aircraft types, Rotary Wing, Fixed Wing, Glider, Multicopter, Car, Boat, Robot.
6. USB Based Update: Transmitter is easily updated with the latest firmware by USB cable to connect PC.
7. Voltage Protection System: RadioLink’s voltage protection software ensures vital components are protected from a reverse polarity connection.
8. Support for Universal Battery: JST 2Pin connector supports multiple type batteries: 8 pcs AA or 2s-4s LiPo battery (Not included batteries). A 3S 1800mAh liPo battery can work more than 12 hours.

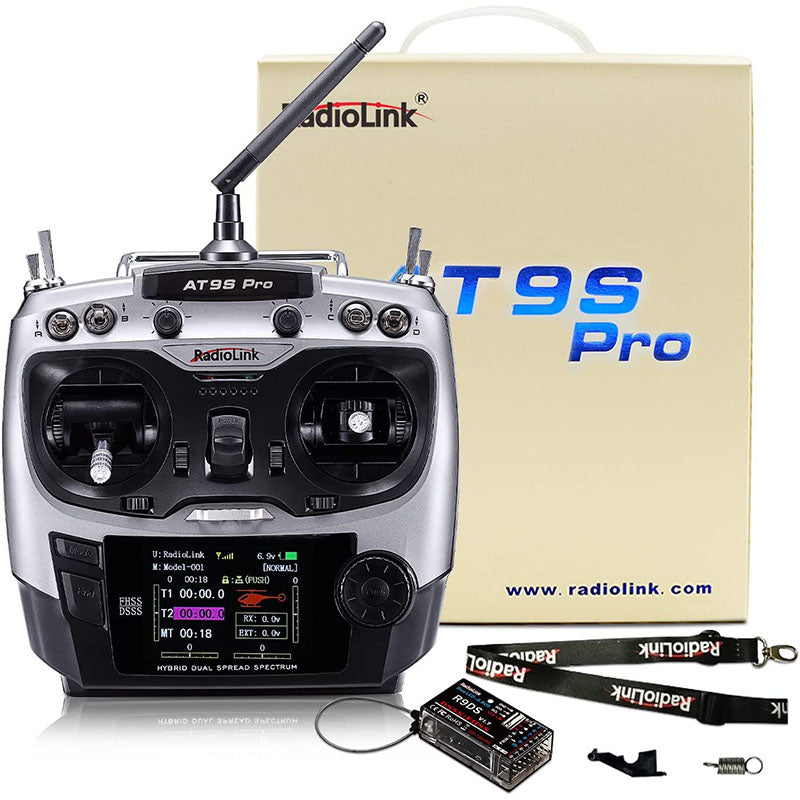

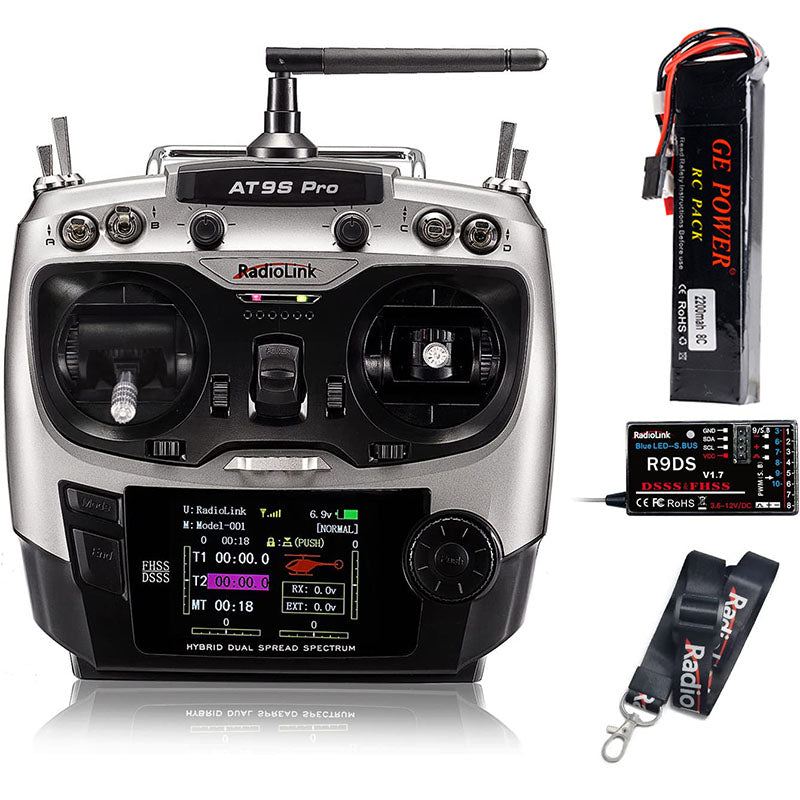

Package Included:
AT9S Pro 1/2 Mode x 1
3S 11.1V 2200mAh dedicated lithium battery (optional) x1
R9DS Receiver x 1
Radiolink Lanyard x 1
Mode 1/2 Changing Parts x 1
Simple User Manual x 1

Note: If you need manual in detail, here's the official online manual (Click here)

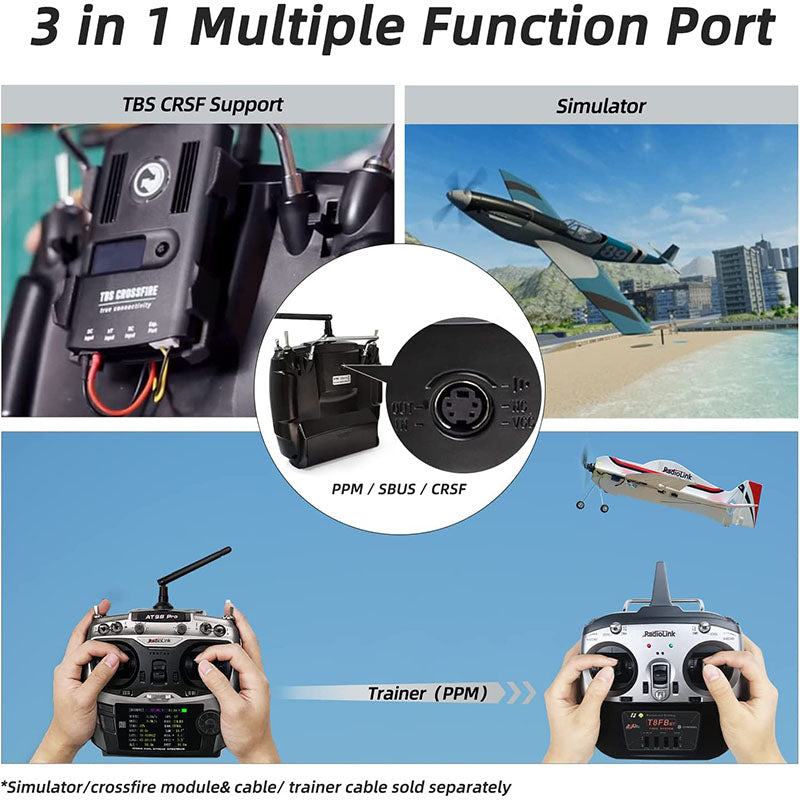

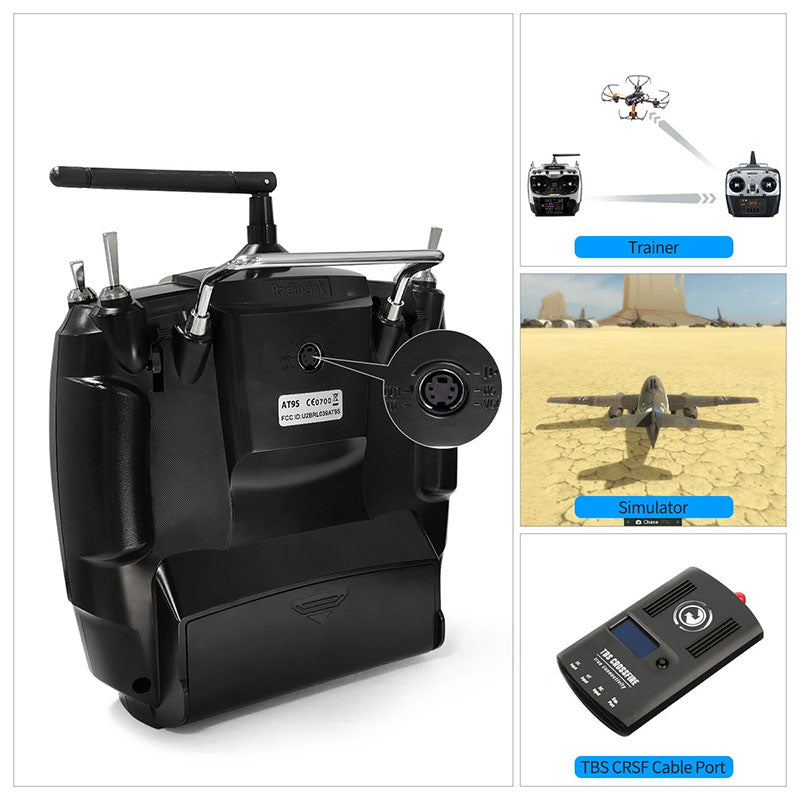

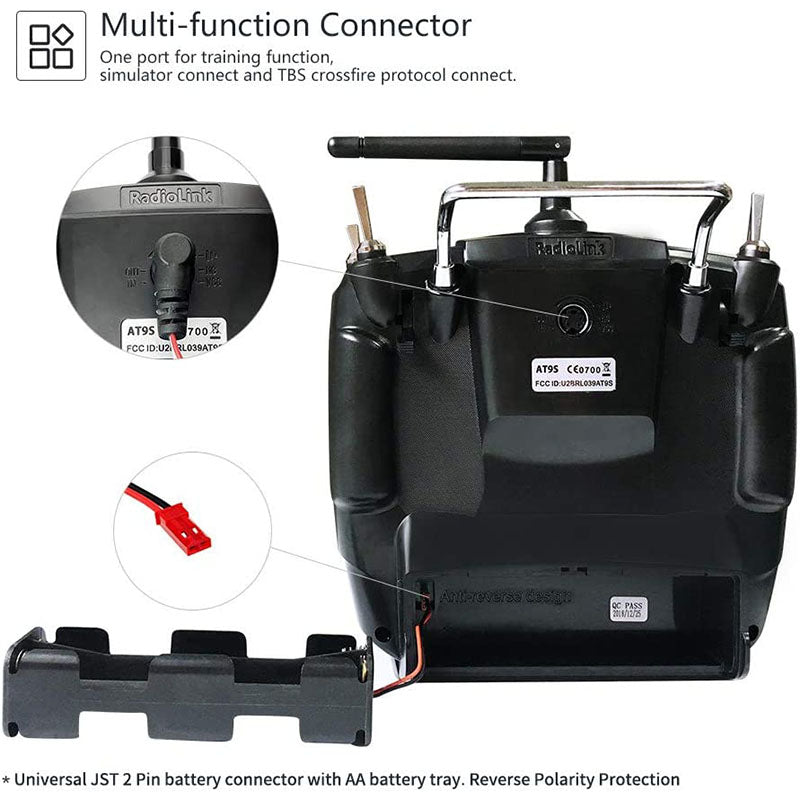

3 In 1 Multi-function Port:
Support wireless training & most of simulator & TBS crossfire protocol

Up to 4000 Meters Control Distance in the Air:
The actual distance is up to the environment

Programmable Mix Control:
All twelve channels can be programmed to any advanced setting.

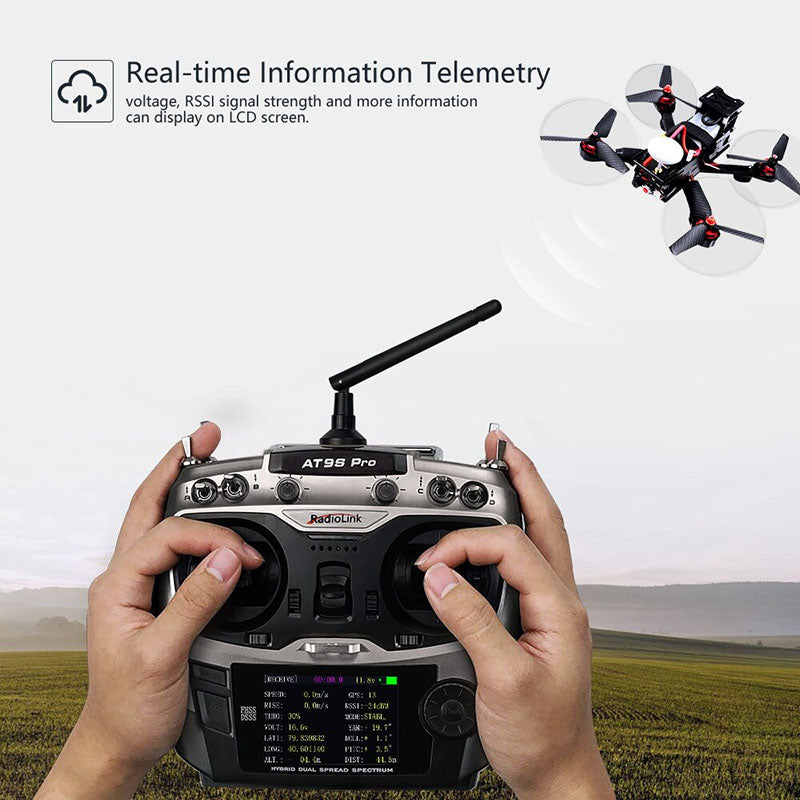

Real-time Information Telemetry:
Telemetry the battery voltage of aircraft, RSSI signal, transmitter and receiver voltage, ect.

Suitable for Multiple Models:
Drone, Quadcopter, Fixed Wing, Helicopter, Car & Boat Vehicles and more.

Compatible Receivers:
Only compatible with Radiolink receivers of R12DS, R12DSM, R9DS, R6DS, R6DSM.

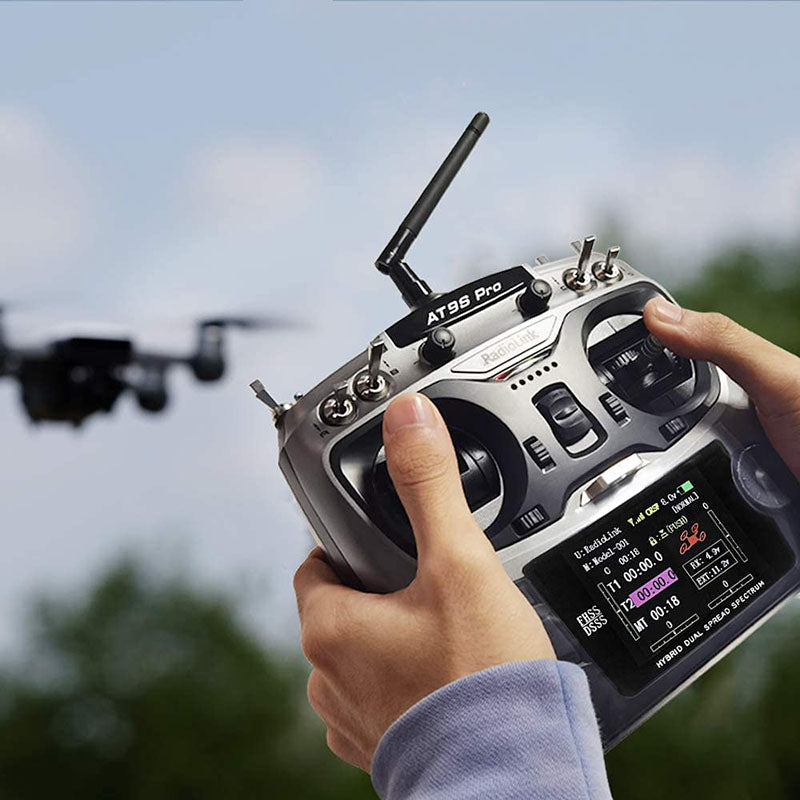

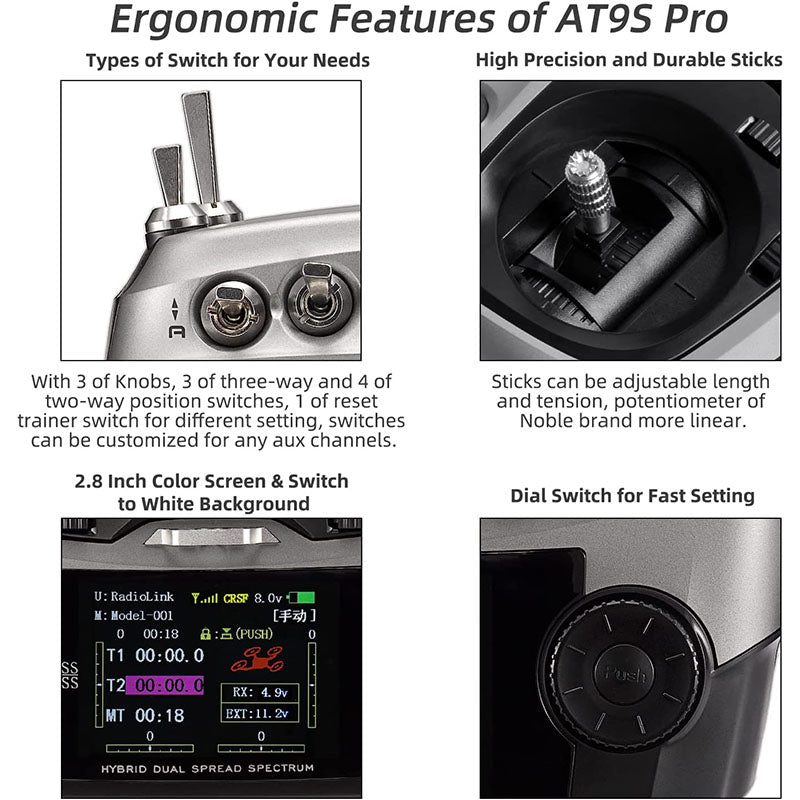

Superb Ergonomics：

Anti-polarity Connect Protection:
It keep your transmitter safet even if you accidentally connect the wrong positive and negative poles.

Friendly Warning Alarm:
Low RSSI, low voltage and throttle position alarm, with DD sounds, vibration and words remind you on outdoor readable LCD.

USB Upgrade:
Easy upgrade by USB cable.

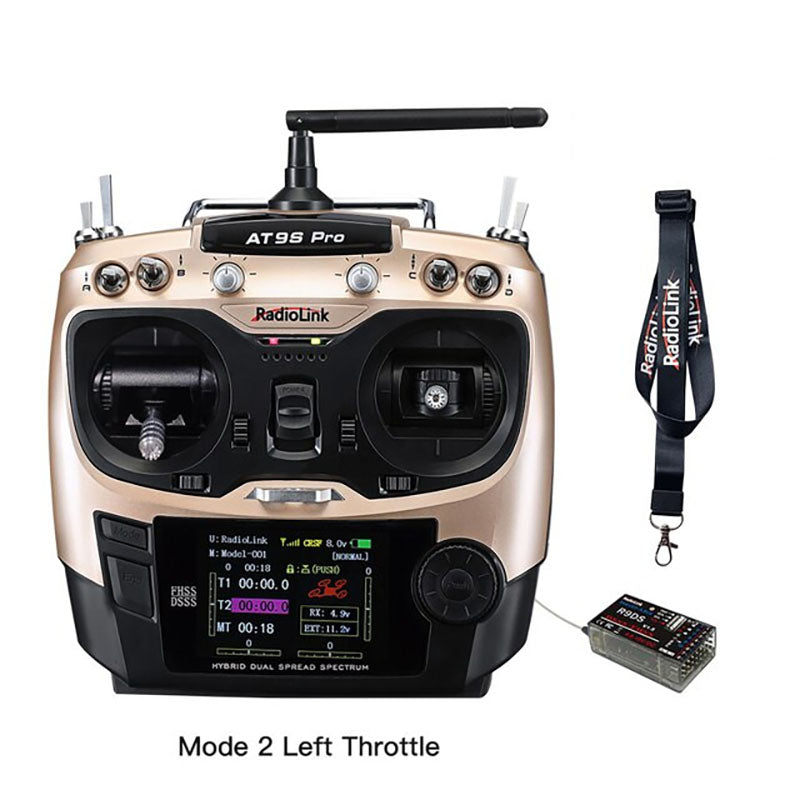

Product Color Show:

AT9S/AT9S Pro FAQ
Q1: How to upgrade AT9S Pro firmware?
A: Please click below link to check the tutorial video
https://youtu.be/6_lJ9EPHzLo

Q2: Will the parameters of different model types set before be cleared or modified once the firmware flashed/upgraded?
A: No. The firmware upgrade won't change any personalized parameters already set.

Q3: Can AT9S Pro Mode be changed?
A: Yes, exchange the positions of the Lever Arm Spring and the Tension Plate. Then enter the BASIC MENU to the corresponding Mode Number. Or ask help from after sales service

Q4: What are the compatible receivers to AT9S?
A: Compatible receivers: R6DSM, R6DS, R9DS, R12DSM, R12DSM
Make sure your AT9S Pro is 12CH when works with R12DS, R12DSM.
Make sure your AT9S Pro is 10CH when works with R6DSM, R6DS, R9DS.
BASIC MENU -> SYSTEM -> Select the CH-SELECT and change the Number as required.

Q5: How to calibrate AT9S Pro joysticks?
A: Press END key and PUSH key at the same time, then turn on the power switch to enter the interface of joystick calibration and follow the steps shown on the screen. Click below link to check the tutorial video. https://youtu.be/84lEYy-d_Uo
