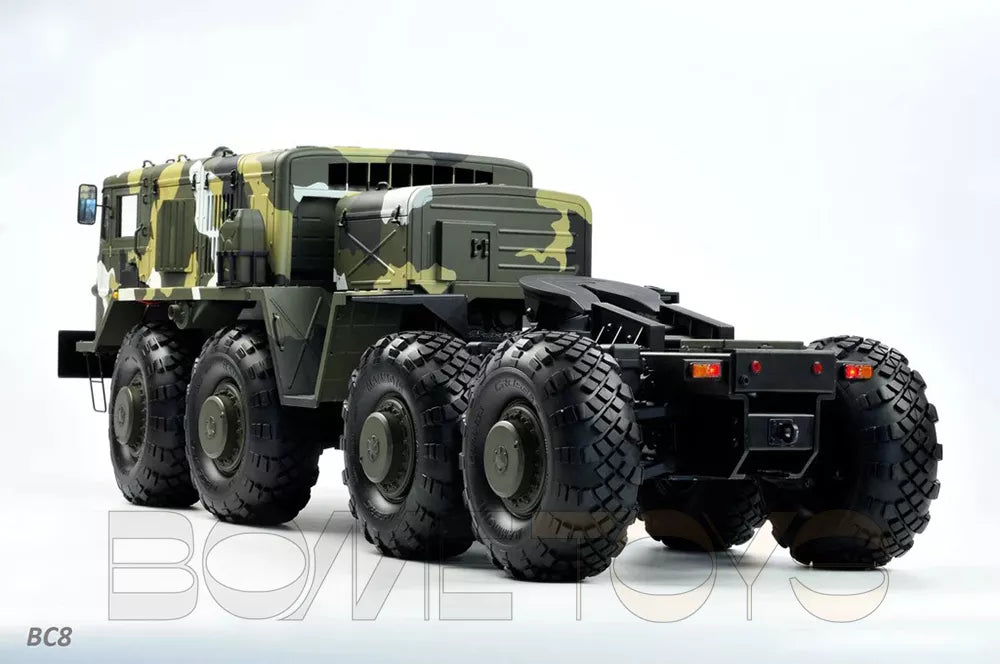

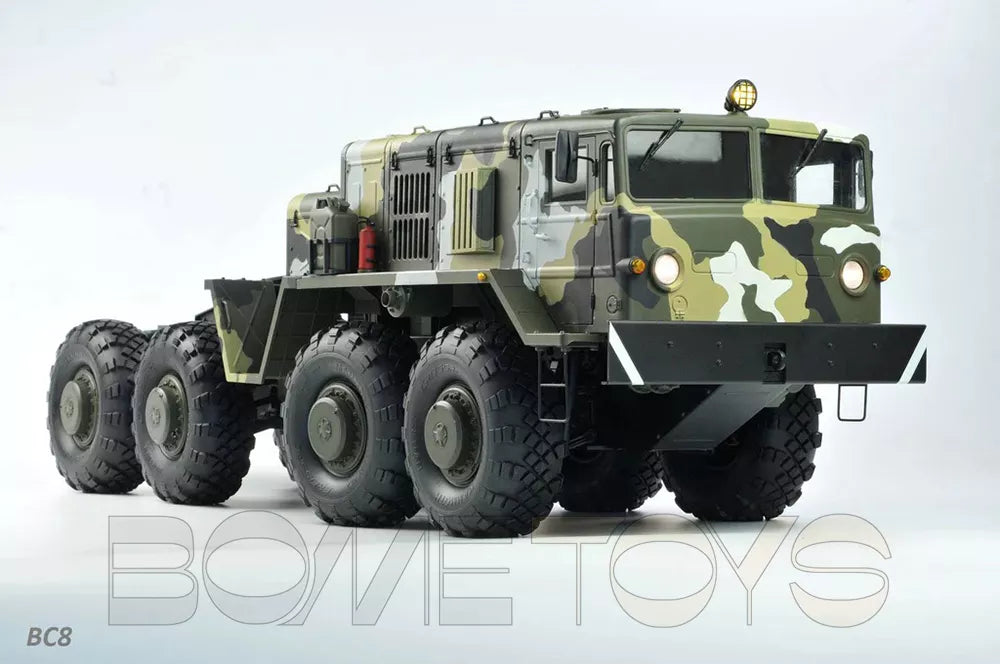

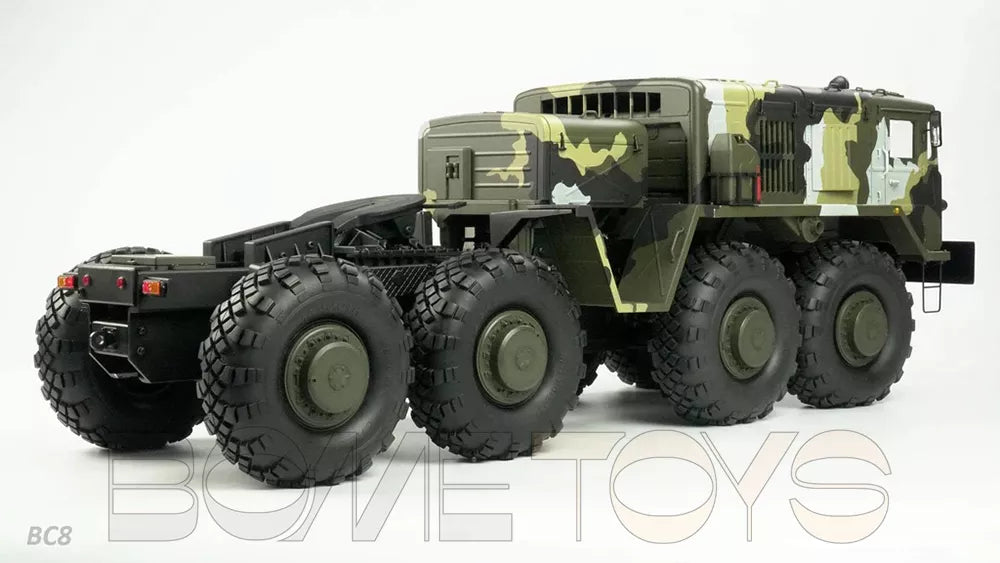

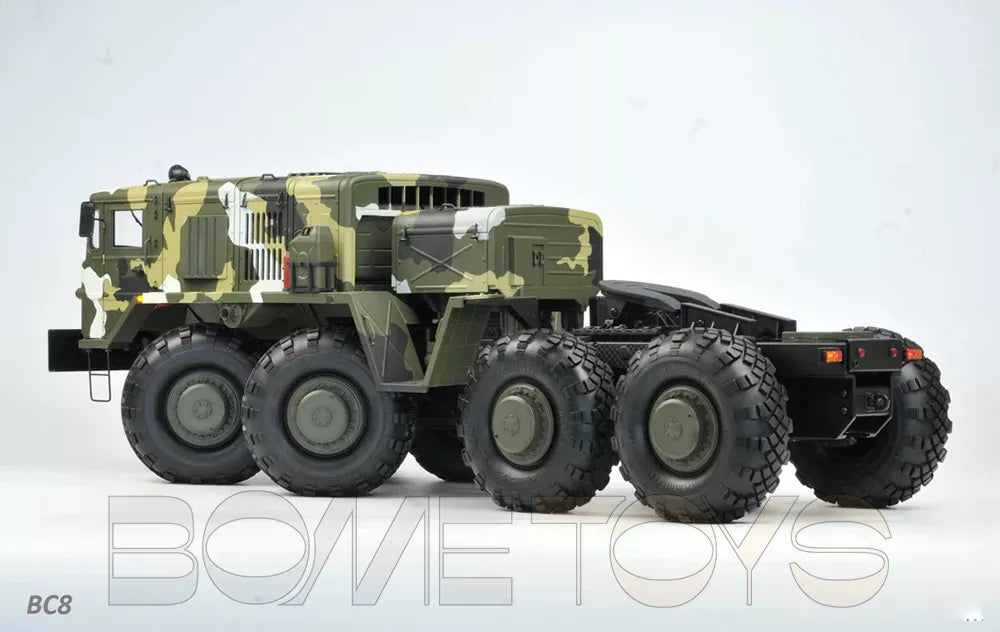

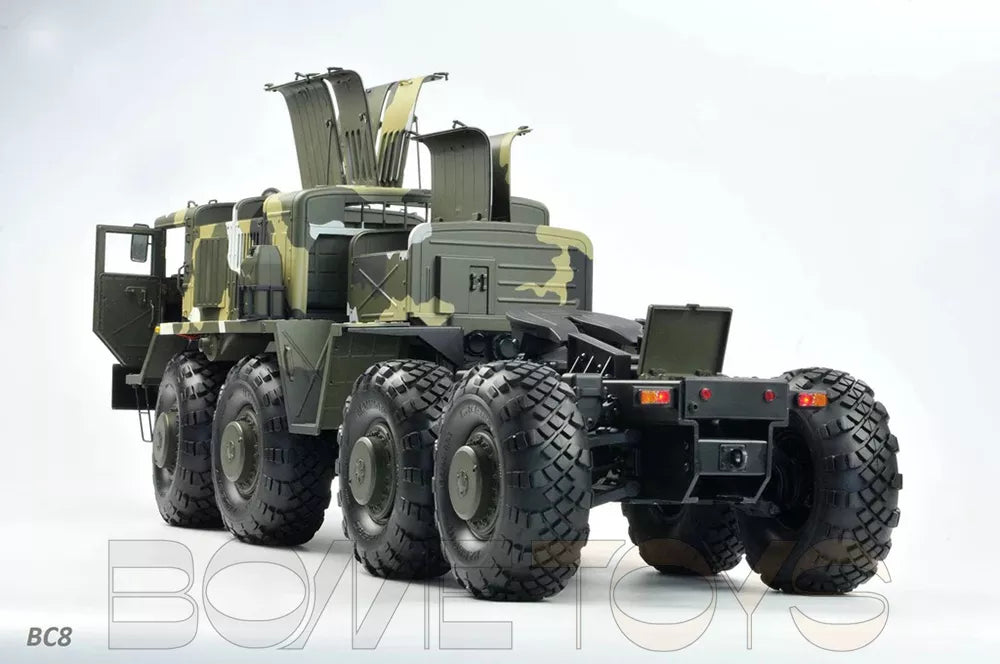

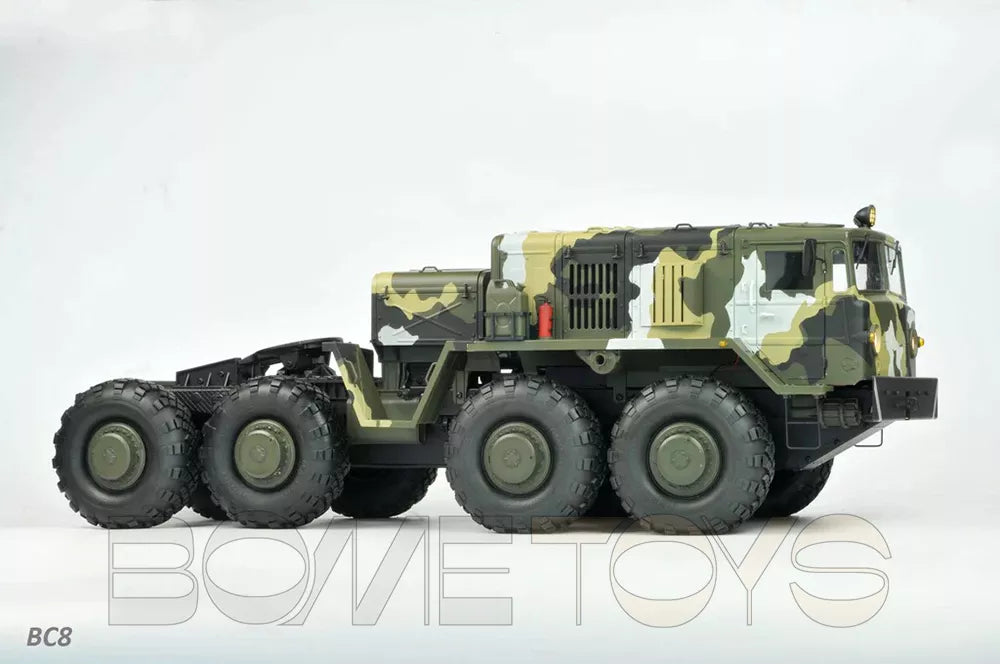

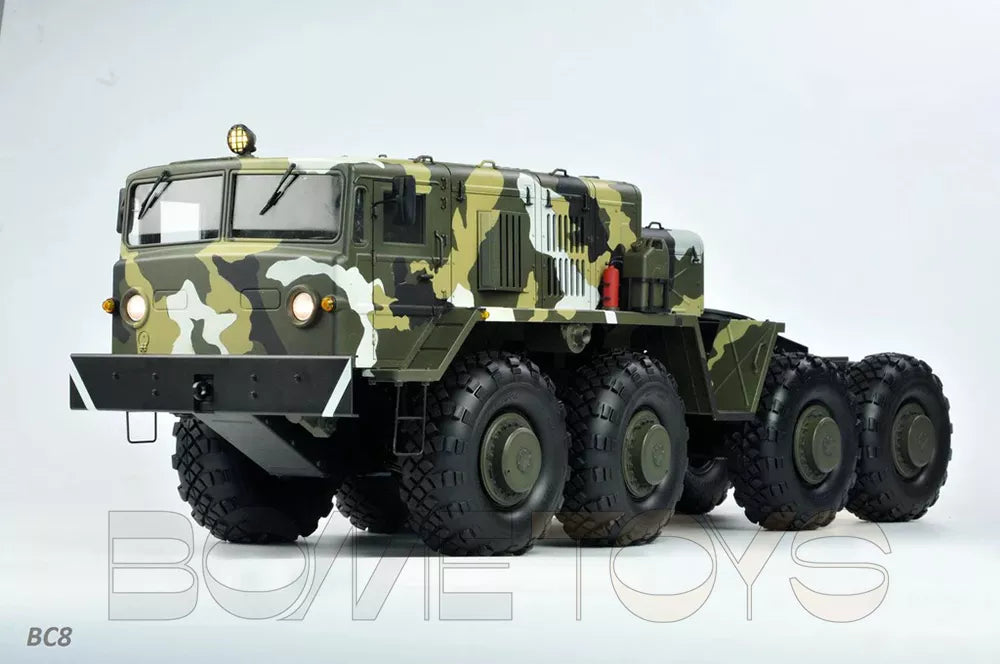

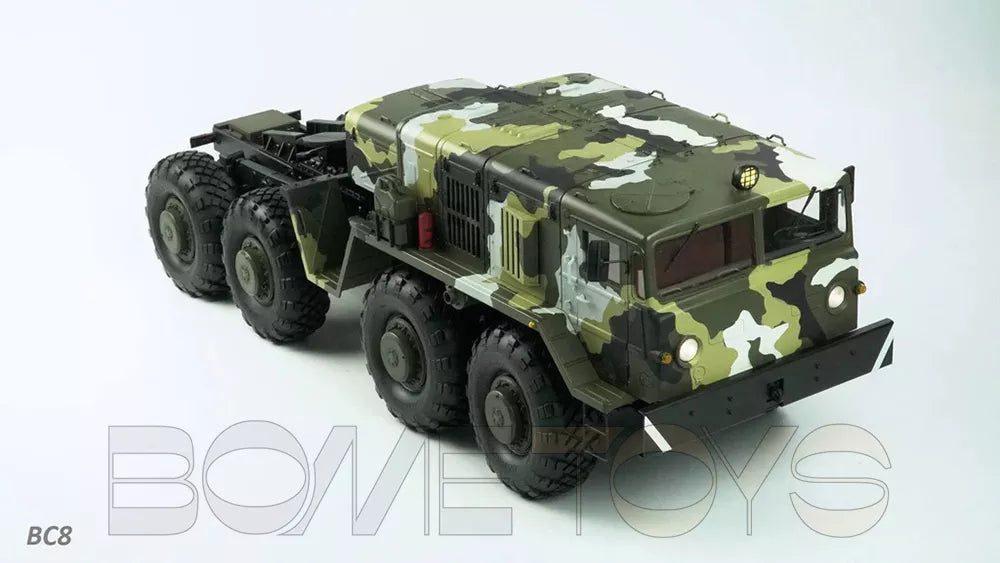

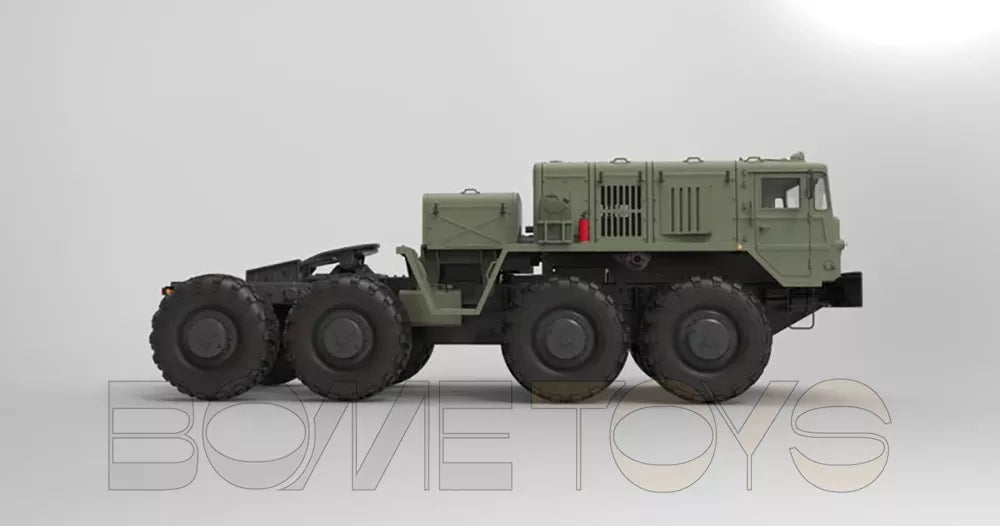

CROSSRC BC8 Mammoth 8x8 1/12 Scale RC Car Military Transport Climbing Car Off-road Model 8WD Toy KIT/RTR

CROSSRC DC8 8x8 1/12 RC Car Scale Military Transport Climbing Car Off-road Model 8WD Toy KIT/RTR

CROSSRC BC8 T247 Tractor Military Truck RC Tail Lift Plate Towing Flat Trailer T247 (Click to View)

CROSSRC BC8 Flagship Version Features:
* Completely independent 8-wheel suspension
* CNC metal 3mm thick I-beam chassis rails
* Four-wheel front steering with torsion spring suspension system
* 38T, 560-size brushed motor and 10T pinion included
* All-metal 2-speed gearbox
* Flagship version features all-metal main suspension components
* Simulation of giant cross-country mammoth tiresin 5.3”
* Biaxial steering system
* Double-ball CV-driveshaft system
* The transmission structure consists of two components of front and rear drive and transmission module.
* Double ball CVD semi shaft with hard special steel

Specifications:
Overall Length: 765mm (30.1")
Overall Height: 276mm (10.9")
Wheelbase: 516mm (20.3")
Width: 250mm (9.8")
Ground Clearance (to axle pumpkin): 57mm (2.2")

What are the characteristics of the performance and configuration of the CROSSRC BC8 8×8 military truck?
1. CROSSRC BC8 is equipped with a specially customized 560 enhanced high-torque brushed motor to provide strong power output. At the same time, it is equipped with 10T steel teeth as standard, and the original factory supports 3 LIPO batteries. With 14T steel teeth (flagship version delivery), it can bring a violent and high-speed driving experience. In order to maintain the stable and continuous power output of the motor, BC8 is also specially equipped with a motor cooling fan.
2. CROSSRC BC8 adopts a full-vehicle independent suspension system, the front steering drive wheel is a four-set high-strength torsion spring shock absorption system, and the rear wheel is a balance beam suspension system. This design not only improves the stability and off-road capability of the vehicle, but also brings a realistic walking posture and driving experience.
3. CROSSRC BC8 is equipped with a newly developed simulated giant off-road mammoth tire with a diameter of 135mm and a width of 48mm. At the same time, it is equipped with 2.4-inch metal wheels and simulated wheel hub covers, which further enhance the off-road performance and simulation of the vehicle

What are the advantages of the structural material and intelligent scalability of the CROSSRC BC8 8×8 military truck climbing vehicle?
1. CROSSRC BC8 specially customized a metal special-shaped beam with a thickness of 3mm, which is finely processed by CNC numerical control machinery. Each set of crossbeams and four sets of integrated floor armor build a solid backbone of BC8 to protect the body from damage.
2. The eight sets of upper and lower swing arms and connection kits of CROSSRC BC8 8×8 drive are injection molded by carbon-reinforced nylon. The flagship version is upgraded to a full set of metal CNC independent suspension components to ensure the stability and durability of the vehicle in harsh terrain.

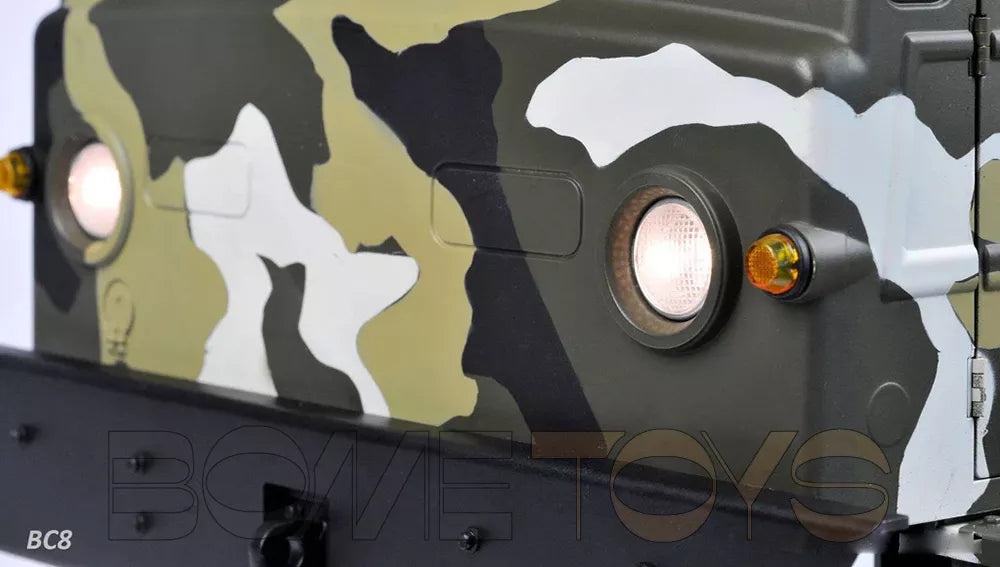

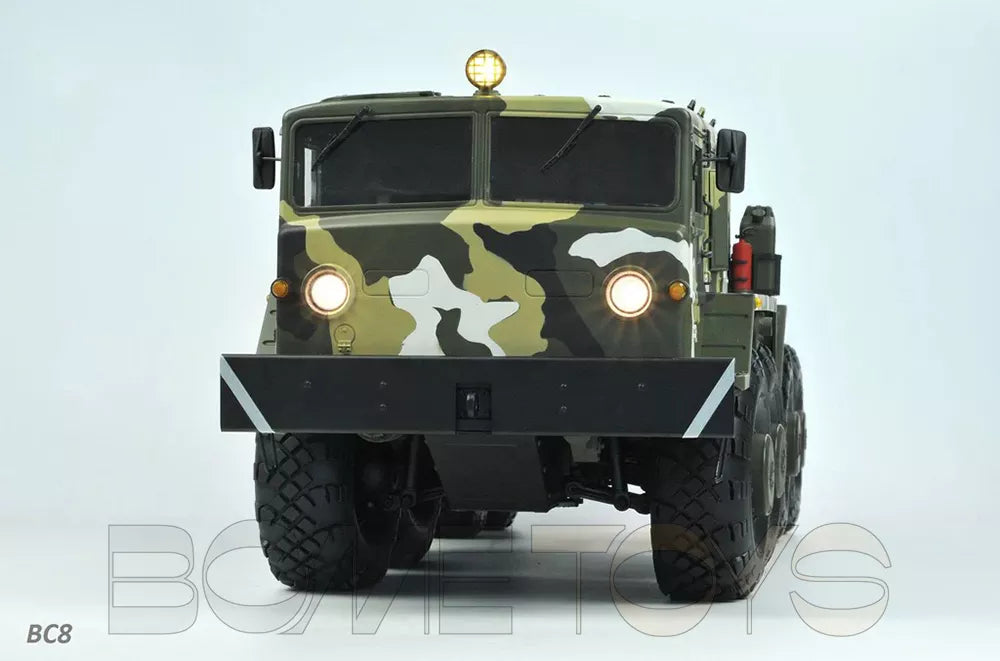

3. CROSSRC BC8 8×8 drive comes standard with a full-vehicle intelligent linkage light group, and also has a dashboard backlight and interior reading light, which enhances the simulation experience. At the same time, the dual-axis steering structure, remote control linkage steering, and metal servo brackets and steering mechanisms ensure smooth and effective steering and convenient adjustment.
4. CROSSRC BC8 8×8 drive frame is equipped with a full metal double-axle heavy-duty traction seat and metal traction guide rails. With the abundant power of 8X8, it can effectively load and tow various heavy equipment to the destination in an off-road environment. In addition, CROSSRC will also launch a series of trailer products suitable for BC8 to bring users more simulation fun.

CROSSRC BC8 Assembly Instructions：
1. Always perform painting and gluing of body parts in a well-ventilated area and wear a protective mask.
2. Pay attention to adhesive selection during assembly: Use ABS-specific cement for the ABS body shell. For acrylic windows and light lenses, use a low-corrosion clear adhesive or model-specific cement.
3. Before gluing ABS plastic parts, clean the bonding surfaces thoroughly. Ensure no paint is present on the surfaces. Apply ABS cement to both parts and hold them under pressure for 10 seconds to ensure a strong bond.
4. Conduct a dry-fit assembly of body parts before gluing or painting to determine the correct sequence of operations.
5. Refer to page 63 of the manual for the electronic wiring diagram. Perform power system testing only when the wheels are off the ground.
6. This is a high-precision model kit requiring technical experience and over 60 hours of assembly time. Please read this manual thoroughly before starting and follow the instructions precisely.
7. Threadlocker is required during assembly. Important: Prevent any contact between threadlocker and the body shell parts. Threadlocker can cause a chemical reaction with ABS material, leading to brittleness and cracking.
8. It is recommended to use tools designed for model building. Always observe proper tool safety during assembly.

Packaging size: 82*46*22 CM
Package weight: 15 KG
Battery Compartment Dimensions: 150*42*28 mm

Please Note: The KIT version is provided in an unpainted and unassembled state. You will need to perform the painting and assembly yourself. The RTR version comes pre-painted and pre-assembled in a solid military green color. The KIT version is more suitable for experienced or professional modelers.

* KIT Version: Includes 1 original motor; Does not include servos, ESC, transmitter, battery and charger are optional.

* RTR Version: Includes 1 original motor; 3 servos (2 for steering, 1 for 2‑speed shift); 1 ESC; 1 transmitter; battery and charger are optional.
