YIKONG

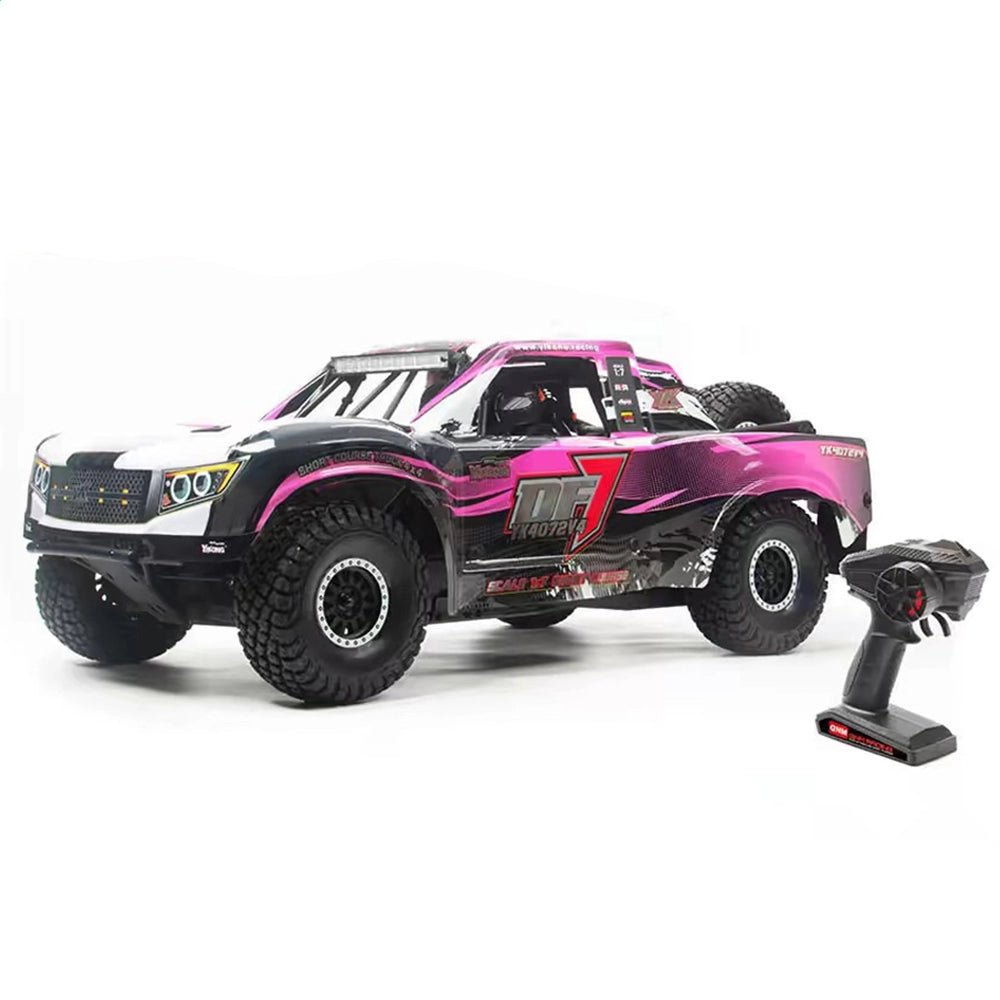

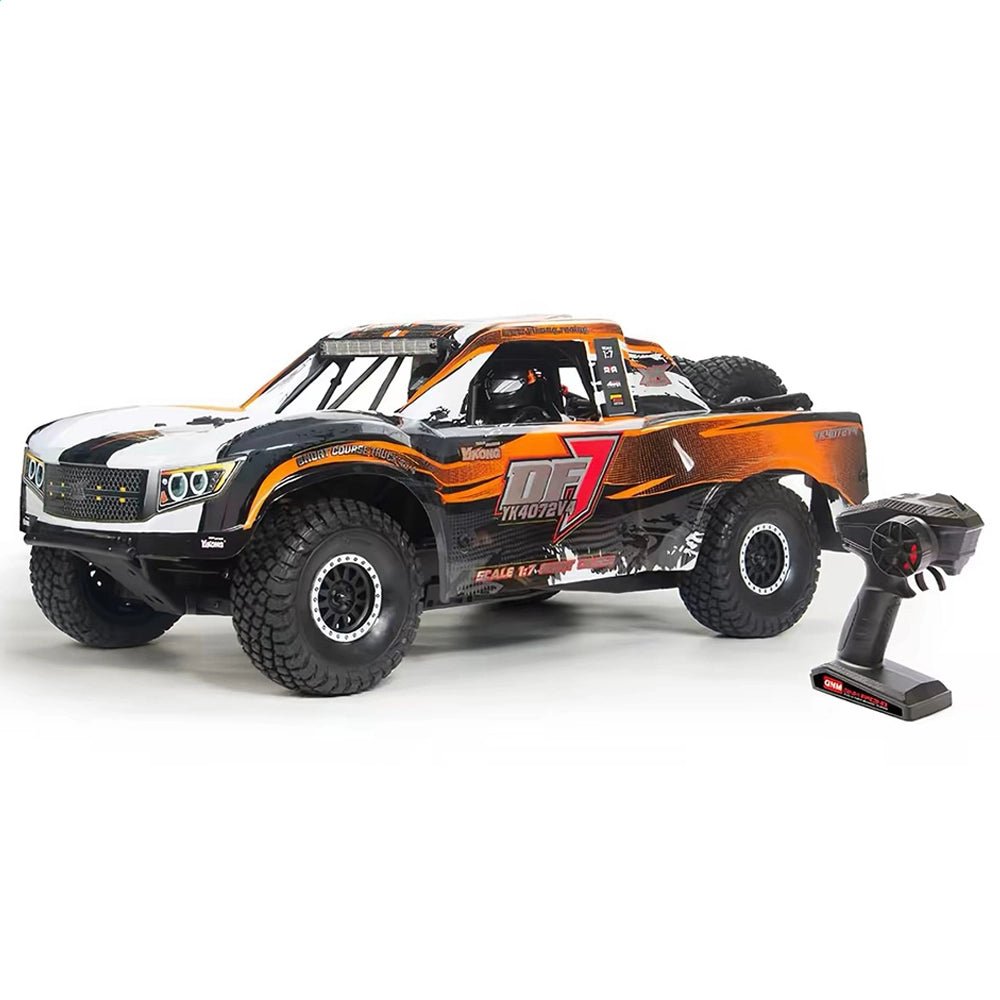

YIKONG YK4072 DF7 V4 1/7 Desert Rear Straight Axle Short Course Truck 4WD Brushless RTR
Choose options
YIKONG YK4072 DF7 V4 1/7 Desert Rear Straight Axle Short Course Truck 4WD Brushless RTR
Product Overview
The YIKONG YK4072 DF7 V4 1/7 Desert Rear Straight Axle Short Course Truck is a large-scale 4WD brushless RC truck built for desert-style off-road driving. This 1/7 scale desert short-course truck pairs independent front suspension with a solid rear straight axle for a distinctive desert racing layout.
The YK4072 DF7 V4 RC truck features a 4 mm aluminum main chassis, a centrally positioned 4274 1600KV brushless motor, a 150A ESC and dual symmetrical battery bays. Eight long-travel aluminum shocks with progressive springs help the truck handle rough terrain. The open upper-deck layout supports airflow and makes routine maintenance easier.
Choose Metallic Purple or Metallic Orange. Battery and charger options are available.
Key Features
- 1/7 scale desert short-course truck: Large-scale 4WD platform with desert racing styling.
- Rear straight axle design: Solid rear axle paired with independent front suspension.
- 4274 1600KV brushless motor: Brushless power for off-road and desert truck driving.
- 150A ESC: Supports 2S–6S LiPo configurations, according to the supplied V4 product images.
- 4 mm aluminum chassis: Reinforced aluminum main chassis and upper deck.
- Central motor placement: Helps balance the chassis and leaves the upper deck open for airflow and maintenance.
- Dual symmetrical battery bays: Places two battery packs on opposite sides of the chassis.
- Eight long-travel aluminum shocks: Progressive springs support suspension movement over uneven terrain.
- 40 kg metal-gear steering servo: High-torque steering configuration shown in the V4 product images.
- Fixed XT60 connectors: Chassis-mounted connectors help organize battery leads.
- Integrated LED lighting: Roof light bar, front headlights and rear lights.
- One-piece PC body with roll cage: The body attaches to multiple points on the protective cage.
- 17 mm wheel hexes: Uses 17 mm wheel hex fittings.
Specifications
| Spec | Detail |
|---|---|
| Brand | YIKONG |
| Model | YK4072 DF7 V4 |
| Full name | DF7 Desert Fighter V4 |
| Scale | 1/7 |
| Type | 4WD brushless desert short-course truck |
| Completion level | RTR |
| Drive system | 4WD |
| Front suspension | Independent suspension |
| Rear suspension | Solid rear straight axle |
| Motor | 4274 1600KV brushless motor |
| ESC | 150A brushless ESC; supports 2S–6S LiPo |
| Steering servo | 40 kg metal-gear servo (V4 product images) |
| Radio system | 5-channel 2.4GHz transmitter with built-in gyro |
| Shock absorbers | Eight long-travel aluminum shocks with progressive springs |
| Chassis | 4 mm aluminum main chassis with upper deck |
| Center differential | CNC aluminum case with steel gears |
| Battery layout | Dual symmetrical battery bays |
| Battery compartment | 181 × 47.5 mm, per YIKONG listing |
| Battery connector | Fixed XT60 connectors |
| Wheel hex | 17 mm |
| Tire diameter / width | 135 mm / 54 mm |

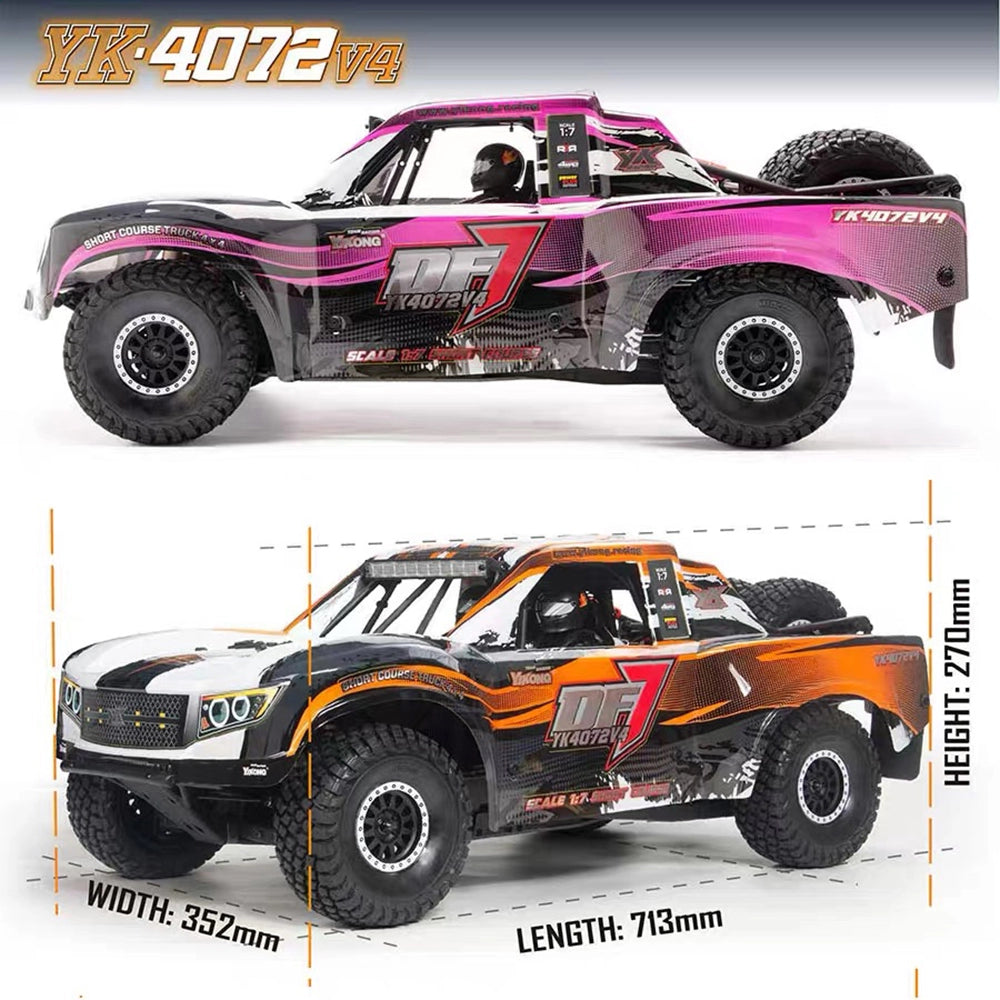

| Vehicle dimensions | 713 × 352 × 270 mm |

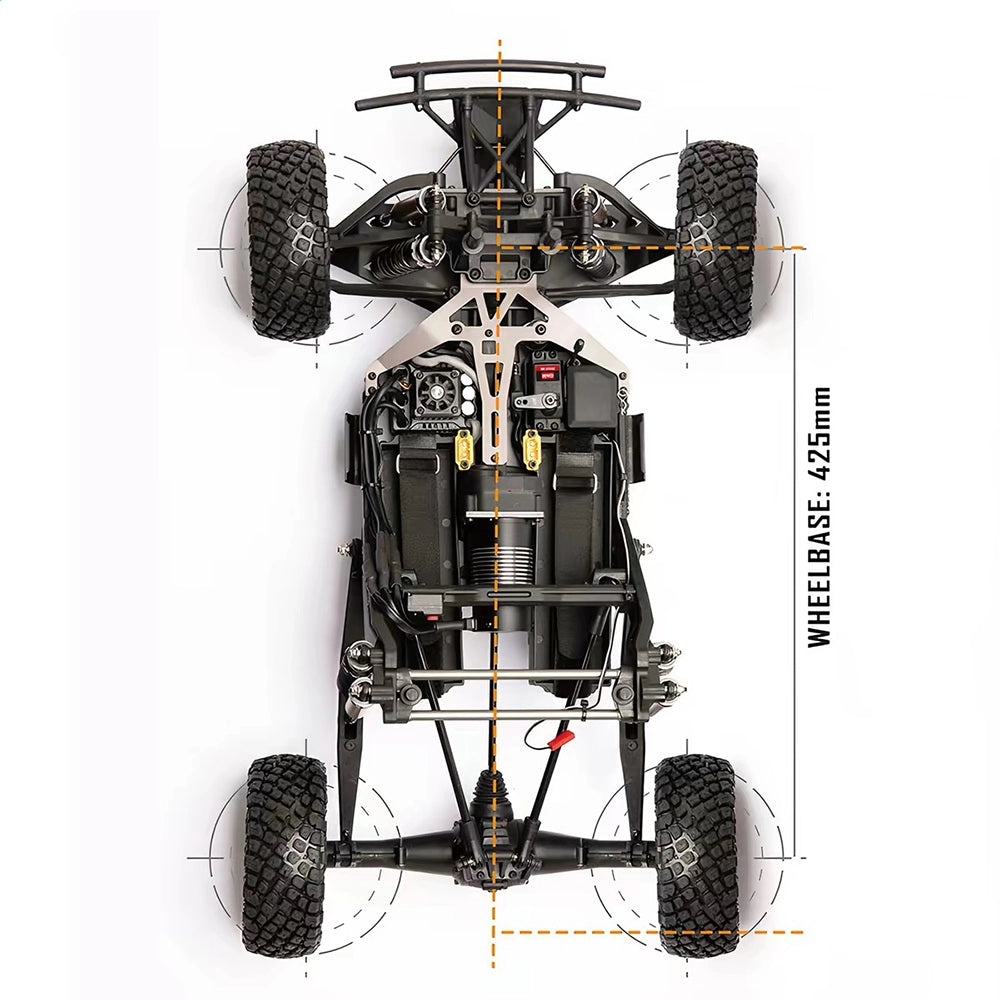

| Wheelbase | 425 mm |
| Product weight | Approx. 6.3 kg |
| Package dimensions | 82 × 41 × 30 cm |
| Package weight | 8.1 kg |
Version Selection
Select the color and battery/charger option that suits your setup.
Color
- Metallic Purple
- Metallic Orange
Battery and Charger
- Not included: Truck supplied without the optional batteries and charger.
- Included: Truck supplied with two Gens ace ACE REDROCK 5300mAh 3S 11.1V 70C LiPo batteries and one Gens ace iMars S60 smart balance charger.
The ESC supports 2S–6S LiPo configurations. The iMars S60 supports 2S–4S LiPo batteries, so charge the two 3S packs separately using the correct balance connections. The iMars S60 is a single-channel charger.
In the Box
- 1 × YIKONG YK4072 DF7 V4 1/7 Desert Rear Straight Axle Short Course Truck
- 1 × 5-channel transmitter with built-in gyro
- 1 × Manual
- 1 × Screwdriver
With the Included option, the package also includes two Gens ace ACE REDROCK 5300mAh 3S 11.1V 70C LiPo batteries and one Gens ace iMars S60 smart balance charger.
Product-Specific FAQ:
What makes the YIKONG YK4072 DF7 V4 a desert rear straight axle truck?
The YK4072 DF7 V4 combines independent front suspension with a solid rear straight axle in a 1/7 scale 4WD short-course truck layout.
Is the YK4072 DF7 V4 ready to run?
The YK4072 DF7 V4 is supplied with its motor, ESC, steering servo, radio system and lighting installed. Batteries and charger are included only with the Included option.
What does the Included option contain?
It includes two Gens ace ACE REDROCK 5300mAh 3S 11.1V 70C LiPo batteries and one Gens ace iMars S60 smart balance charger.
Can the iMars S60 charge the included batteries?
The iMars S60 supports 2S–4S LiPo batteries. Charge the two 3S packs separately using the correct balance connections. It is a single-channel charger.
What colors are available for the YK4072 DF7 V4?
Choose Metallic Purple or Metallic Orange, subject to availability in the product options.
What are the YK4072 DF7 V4 dimensions and weight?
The listed vehicle dimensions are 713 × 352 × 270 mm, the wheelbase is 425 mm and product weight is approximately 6.3 kg. Package dimensions are 82 × 41 × 30 cm and package weight is 8.1 kg.
Does BOMETOYS provide spare parts support for the YK4072 DF7 V4?
BOMETOYS provides parts support for the YK4072 DF7 V4. Contact the BOMETOYS team with the part you need. Photos of the part or the relevant area can help identify it.
2 × Gens ace ACE REDROCK 5300mAh 3S 11.1V 70C LiPo batteries (Optional)
Gens ACE iMars S60 smart balance charger (Optional)
