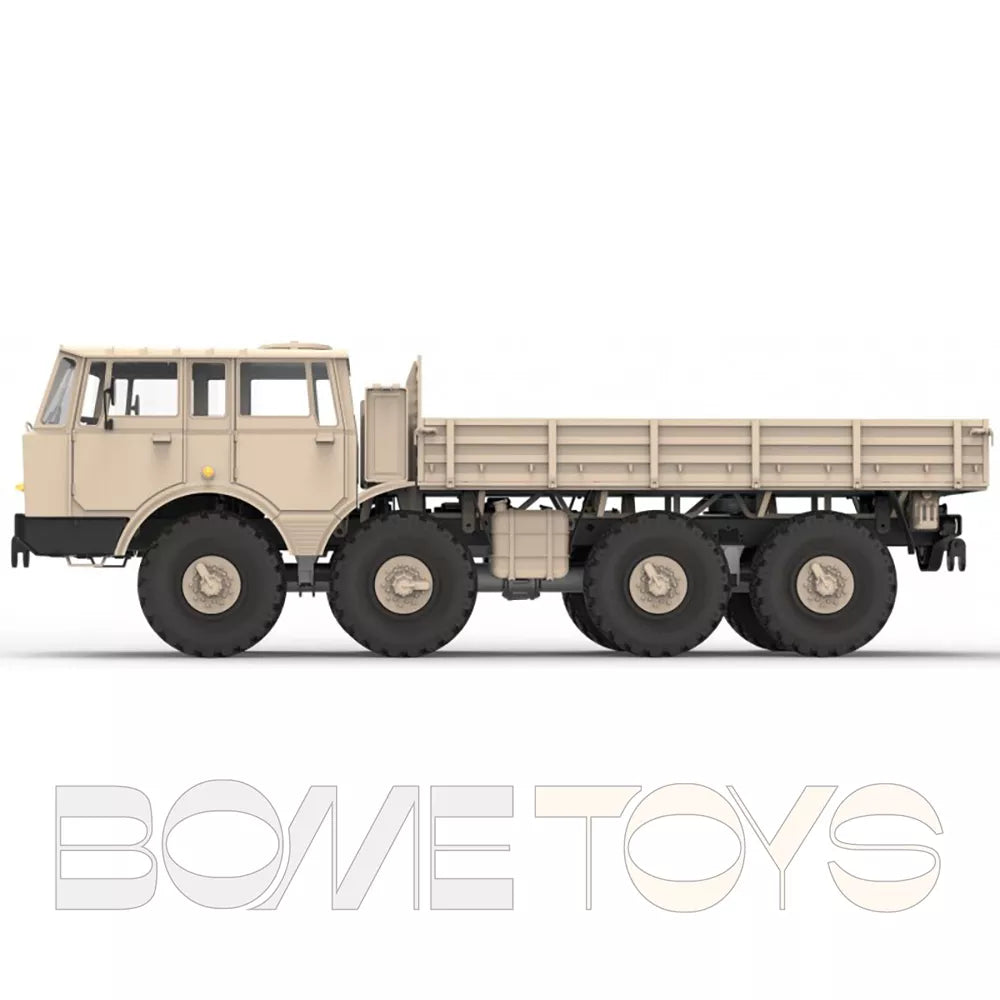

What are the appearance and design advantages of CROSSRC DC8 1/12 8X8 RC Military Truck Climbing Car Off-road Car?

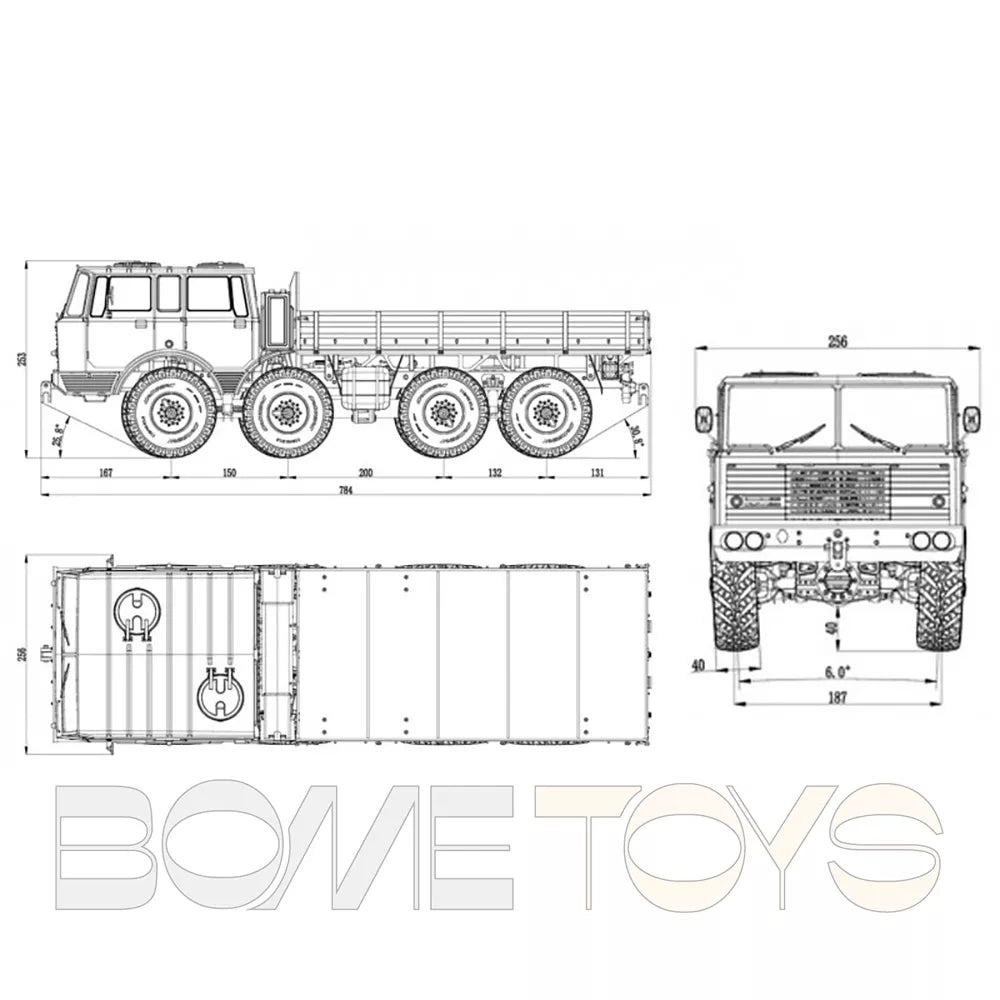

1. Size: The outer dimensions of CROSSRC DC8 are 784x256x253mm, the wheelbase is 150, 200, 132mm, the wheelbase is 187mm, the tire diameter is 118mm, the width is 40mm, and the wheel hub is 1.9 inches.

2. Material: CROSSRC DC8 1/12 8X8 RC military truck is injection molded with high-quality ABS material, which highly restores the details of the real car and is convenient for players to spray and DIY modification.

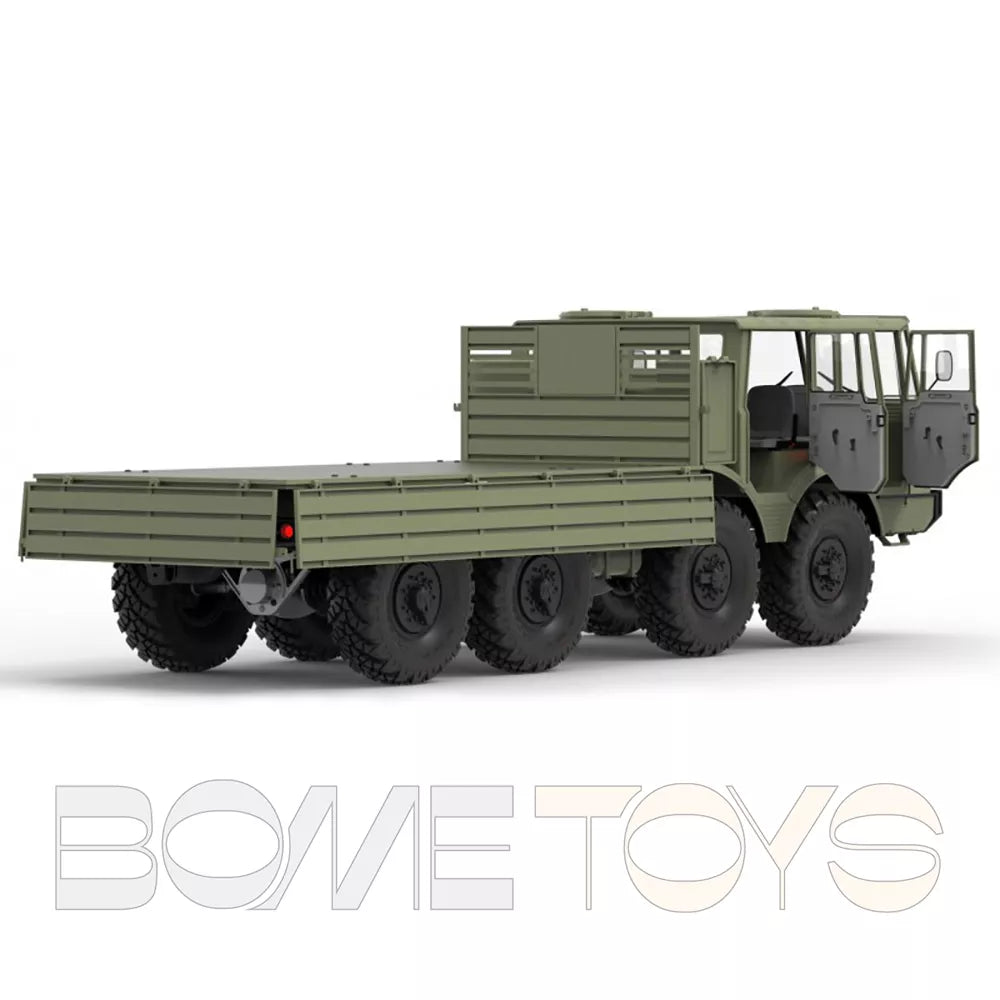

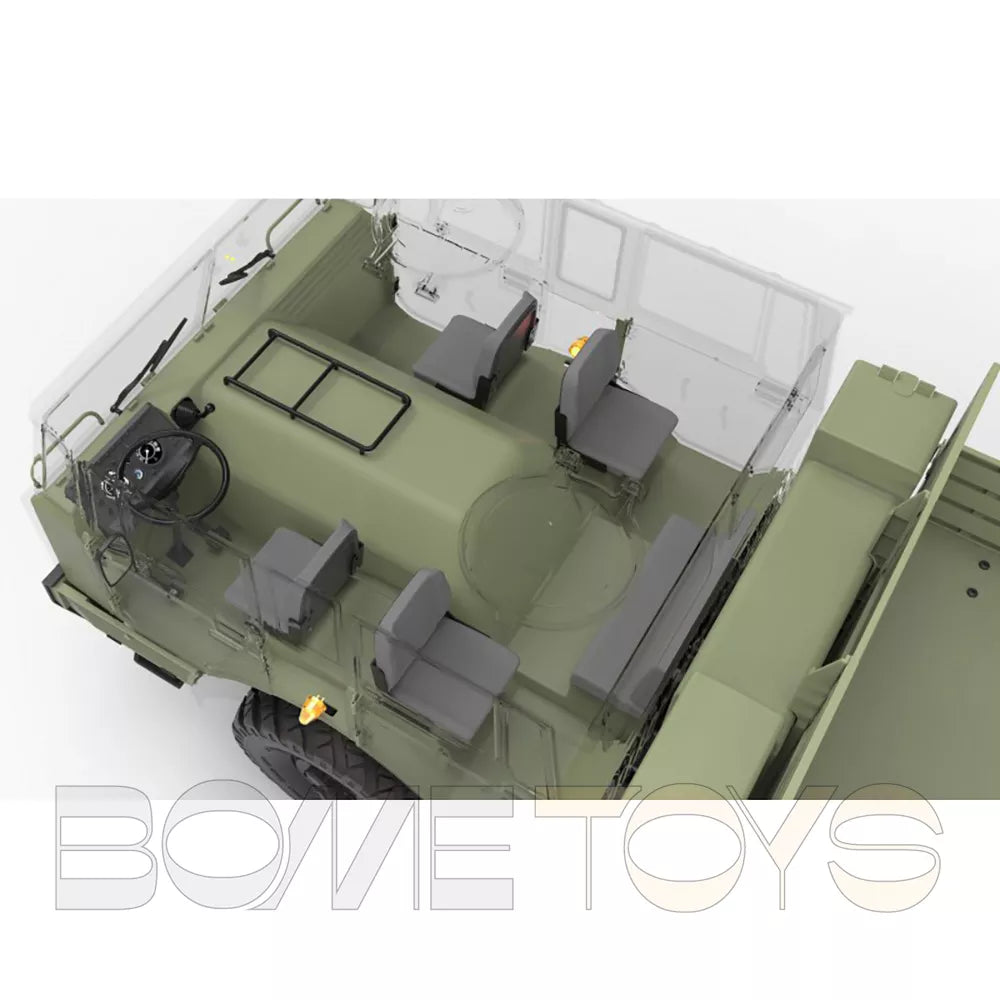

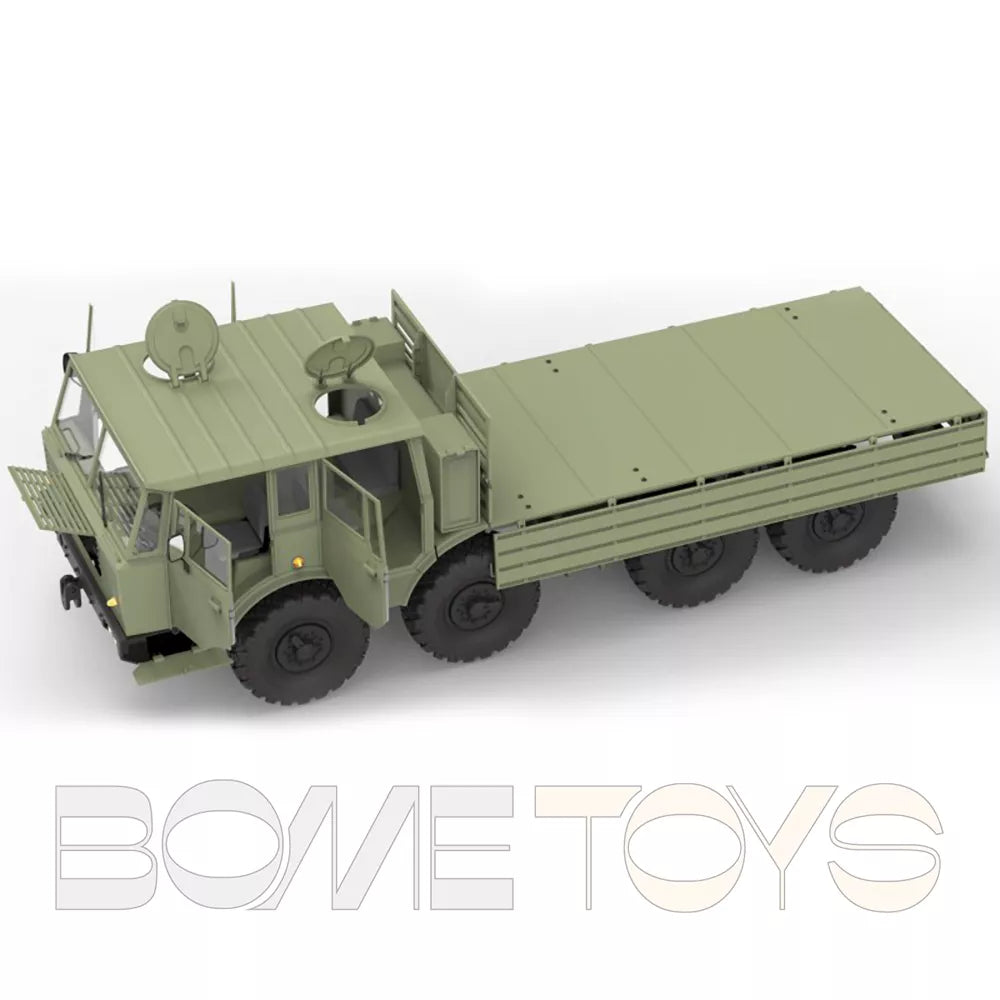

3. Design features:CROSSRC DC8's four doors, engine hood, and top window can all be opened; the cab is designed with a full set of interior and lighting systems; the rear cargo box is designed with three open side panels to meet different uses, and there is also sufficient space for players to modify.

What are the performance and configuration characteristics of CROSSRC DC8 1/12 8X8?

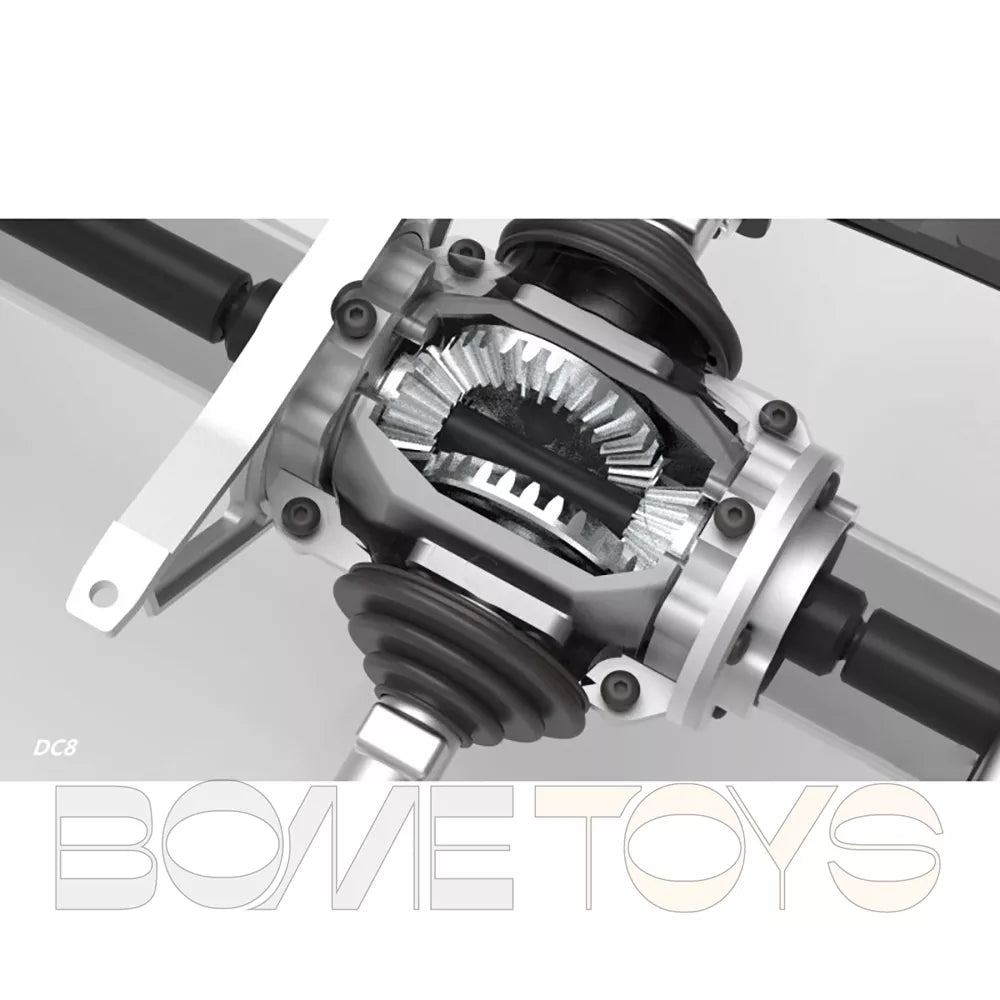

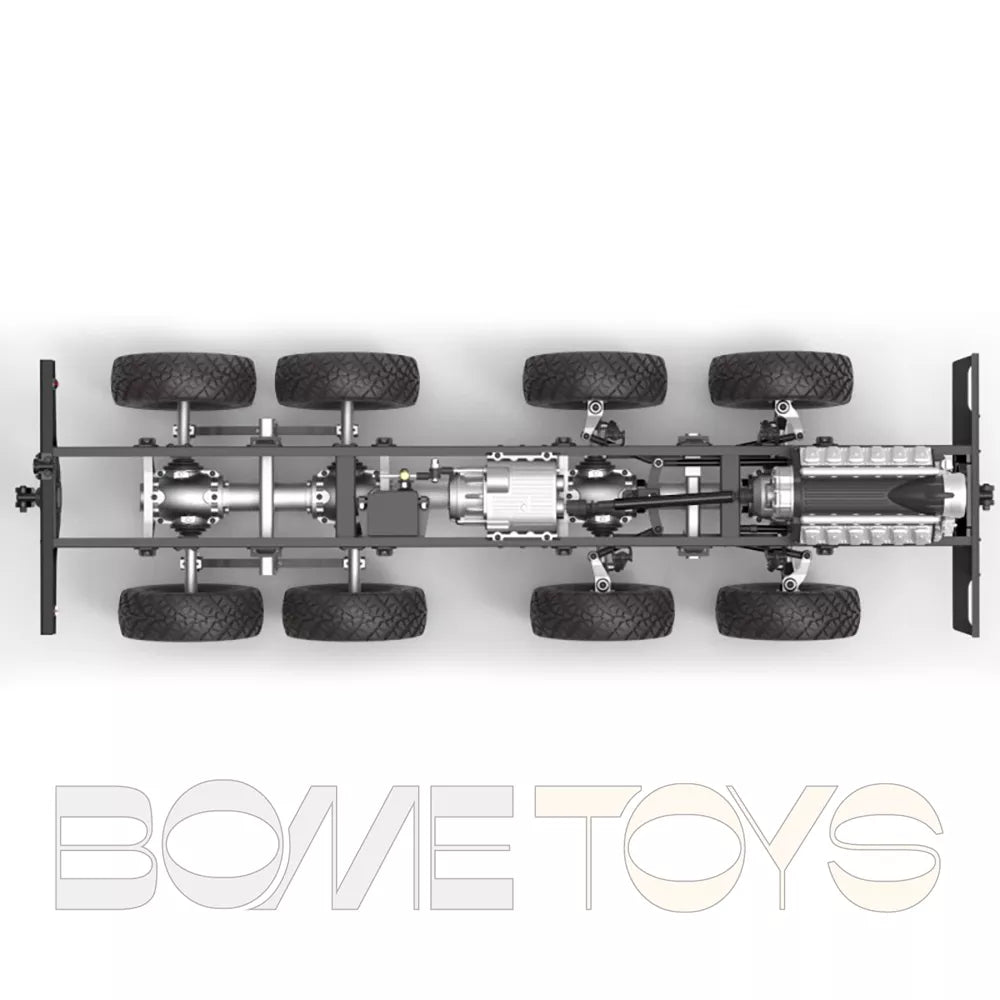

1. Chassis structure: CROSSRC DC8 adopts a front engine and mid-mounted gearbox layout. The power transmits the output torque of the simulated engine (motor installation position) to the central gearbox through a metal drive shaft, and then amplifies it through the central gearbox and distributes it to the swing half-axle output on both sides of the spine tube.

2. Suspension system: The unique skills of the original car are reproduced - the central spine tube frame structure and the swing half-axle independent suspension, which enable the vehicle to adapt to more severe terrain conditions, and the wheels can move up and down flexibly close to the ground.

3. Power system: The CROSSRC DC8 1/12 8X8 simulation engine is equipped with a drive motor and a first-stage reduction. The gear adopts the M0.8 model specification, which can match a reasonable power output. The gearbox and the reduction tail gear are made of steel gears to ensure the reliability of the drive system.

4. CROSSRC DC8 1/12 8X8 battery: The model battery is installed in the tool box between the front of the car and the cargo box. The maximum battery of 140x50x32mm can be placed. The battery with a capacity of 5000~7500mah circulating on the market can meet the needs of playing with cars for a long time.

CROSSRC DC8 Assembly Instructions：
1. Always perform painting and gluing of body parts in a well-ventilated area and wear a protective mask.
2. Pay attention to adhesive selection during assembly: Use ABS-specific cement for the ABS body shell. For acrylic windows and light lenses, use a low-corrosion clear adhesive or model-specific cement.
3. Before gluing ABS plastic parts, clean the bonding surfaces thoroughly. Ensure no paint is present on the surfaces. Apply ABS cement to both parts and hold them under pressure for 10 seconds to ensure a strong bond.
4. Conduct a dry-fit assembly of body parts before gluing or painting to determine the correct sequence of operations.
5. Refer to page 63 of the manual for the electronic wiring diagram. Perform power system testing only when the wheels are off the ground.
6. This is a high-precision model kit requiring technical experience and over 60 hours of assembly time. Please read this manual thoroughly before starting and follow the instructions precisely.
7. Threadlocker is required during assembly. Important: Prevent any contact between threadlocker and the body shell parts. Threadlocker can cause a chemical reaction with ABS material, leading to brittleness and cracking.
8. It is recommended to use tools designed for model building. Always observe proper tool safety during assembly.

A BEC IS ADVISED!
KIT Version recommended electronics:
Transmitter – 6 to run 8 Channel recommended.
Servos – 2 x 30-40KG Hi torque water proof servos 1 x standard waterproof shift servo.
ESC’s – 1 x 80amp

Packaging size: 82*34*24 CM
Package weight: 13 KG
Battery Compartment Dimensions: 135*42*28 mm

Please Note: Both the KIT and RTR versions are supplied as unpainted, unassembled kits. Painting and assembly are required. The finished models shown on the product page have been painted and assembled by other modelers. These versions are most suitable for experienced or professional modelers.

* KIT Version: Includes 1 original motor and 1 CROSSRC UBEC; Does not include servos, ESC, transmitter, battery and charger are optional.

* RTR Version: Includes 1 original motor and 1 CROSSRC UBEC; 3 servos (2 for steering, 1 for 2‑speed shift); 1 ESC; 1 transmitter (3 styles optional); battery and charger are optional.
