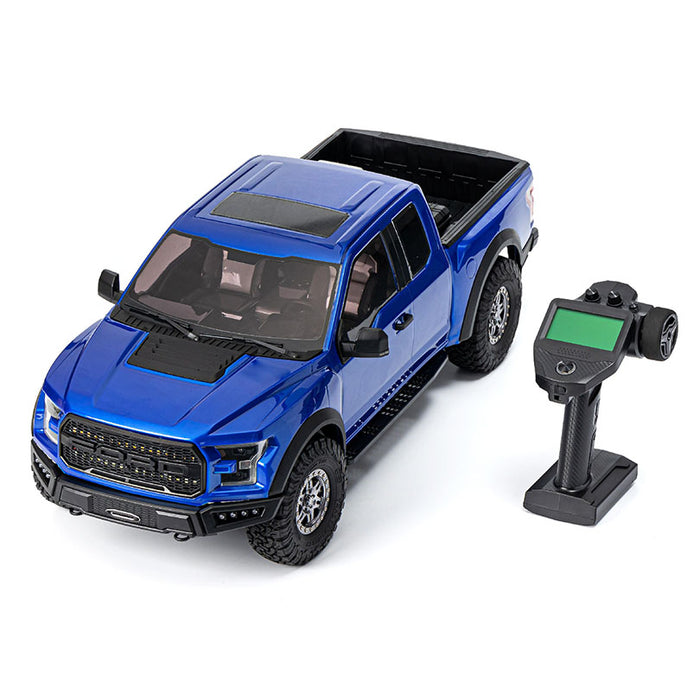

TRACTION HOBBY KM F150 FORD RAPTOR RC Car 1/8 RTR 2.4GHz Simulation Off-Road Climbing Crawler RC Car Toys
The Traction Hobby KM F150 Ford Raptor is a 1/8 scale ready-to-run RC trail crawler with a Ford-licensed F-150 Raptor body. Independent front suspension, a rear solid axle, selectable drive modes and a two-speed transmission make it ready for controlled off-road driving and trail exploration. A steel C-channel chassis, metal drivetrain components and an integrated simulation lighting system complete this large-scale RC truck.
Key Features:
Ford Licensed F-150 Raptor Design
Traction hobby f150 raptor detailed 1/8 scale body recreates the distinctive Ford F-150 Raptor pickup. Scale features include simulation lighting, wipers, door handles, a rear wing and interior details.
Selectable Drive Modes and Two-Speed Transmission
Select front-wheel drive, rear-wheel drive or four-wheel drive to suit the terrain. The integrated metal-gear transmission provides two speeds and reverse for controlled trail driving.
Independent Front Suspension and Rear Solid Axle
Traction hobby f150 raptor front independent suspension and rear solid axle deliver a versatile trail setup. Full-metal shock absorbers measure 8.1 cm at the front and 9.3 cm at the rear.
Steel Chassis and Metal Drivetrain
A 0.15 cm steel C-channel chassis supports the truck’s large-scale platform. Metal transmission gears, a three-differential layout and 0.7 cm metal shafts support the drivetrain.
2.4 GHz Radio and LED Lighting
Traction hobby f150 raptor FS-G7P 2.4 GHz transmitter features a seven-channel LCD display. The SMT and LED lighting system adds scale detail for trail driving.
Battery Compatibility
Traction hobby f150 raptor supports 2–4S LiPo batteries with an XT60 connector. The battery compartment accommodates packs up to 15 × 4.6 × 4 cm. An optional XT60 11.1 V 50C 3S 5200 mAh battery and SKYRC MAX B6AC 80W balance charger are available.
Specifications
| Spec | Detail |
|---|---|
| Brand | Traction Hobby |
| Model | KM F150 Ford Raptor |
| Scale | 1/8 |
| Vehicle Type | Ford-licensed RC trail crawler |
| Drive Modes | Front-wheel drive, rear-wheel drive and 4WD |
| Transmission | Integrated two-speed metal-gear gearbox with reverse |
| Differentials | Three differentials positioned at the front, center and rear |
| Chassis | 0.15 cm steel C-channel chassis |
| Front Suspension | Independent suspension with steel links |
| Rear Suspension | Solid axle with steel links |
| Motor | RS775 brushed motor rated at 21,000 rpm |
| Motor Gear | 14T installed; adjustable gear mesh from 12T to 20T |
| ESC | Hobbywing 880 waterproof ESC with 7.4 V BEC |
| Steering Servo | TH1623HV high-voltage digital steering servo; 25 kg steering system |
| Function Servos | TH1036HV high-voltage digital function servos for shifting and drivetrain functions |
| Transmitter | FS-G7P 2.4 GHz radio with 7-channel LCD display |
| Lighting | SMT and LED simulation light set |
| Battery Compatibility | 2–4S LiPo |
| Battery Connector | XT60 |
| Maximum Battery Compartment | 15 × 4.6 × 4 cm |
| Vehicle Dimensions | 69.5 × 28 × 25.5 cm |
| Wheelbase | 42.1 cm |
| Track Width | 22.2 cm |
| Minimum Ground Clearance | 3.9 cm |
| Approach Angle | 36° |
| Breakover Angle | 32° |
| Departure Angle | 27° |
| Shock Absorbers | Full metal; front 8.1 cm and rear 9.3 cm |
| Tires | KO2 tires measuring 12 cm diameter × 4.2 cm width |
| Wheel Hubs | 5.6 cm CNC aluminum hubs |
| Package Dimensions | 78 × 36 × 35 cm |
| Package Weight | 9.5 kg |
| Available Colors | Blue, White, Red and Black |
Version Selection
Select the preferred body color and battery/charger option.
- Not included: battery and charger are not included.
- Include: the selected battery and charger are included with the package.
The optional battery is an XT60 11.1 V 50C 3S 5200 mAh LiPo battery. The optional charger is the SKYRC MAX B6AC 80W Balance Battery Charger. The truck supports compatible 2–4S LiPo batteries that fit within its battery compartment.
Package Contents
- 1 × assembled Traction Hobby KM F150 Ford Raptor 1/8 scale RC crawler
- FS-G7P 2.4 GHz transmitter
- Installed motor, ESC, servos and lighting system
- Battery and charger according to the selected option
Frequently Asked Questions:
What type of RC vehicle is the KM F150 Ford Raptor?
Traction hobby f150 raptor is a 1/8 scale ready-to-run trail crawler with a Ford-licensed F-150 Raptor body, independent front suspension and a rear solid axle. Its drivetrain and transmission are designed for controlled off-road and trail driving.
Can I choose between front-wheel drive rear-wheel drive and 4WD?
Yes. Traction hobby f150 raptor provides front-wheel drive, rear-wheel drive and 4WD modes, allowing you to select the drivetrain for the route and driving conditions.
Does it have a two-speed transmission?
Yes. Traction hobby f150 raptor integrated metal-gear transmission provides two speeds and reverse for controlled trail driving.
Which battery fits this truck?
Traction hobby f150 raptor supports 2–4S LiPo batteries with an XT60 connector. The battery compartment measures up to 15 × 4.6 × 4 cm. BOMETOYS offers an optional XT60 11.1 V 50C 3S 5200 mAh battery.
Are the battery and charger included?
Battery and charger inclusion depends on the selected option. Choose Include to receive the selected battery and charger with the package, or Not included to supply compatible equipment separately.
What terrain is this truck suited for?
Traction hobby f150 raptor independent front suspension, rear solid axle, selectable drive modes and 3.9 cm minimum ground clearance suit the KM F150 to controlled trail driving and uneven off-road terrain.
Can I get replacement parts for the KM F150?
BOMETOYS provides full parts support for this model. Send us a clear photo of the part and its part number, and our team will help identify the correct replacement.
